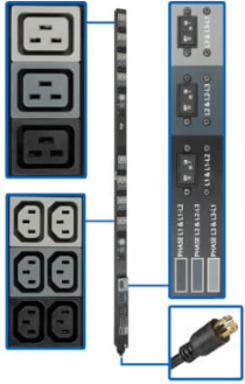

Tripp Lite PDU3V6L2130 Basic PDU, 3-Phase, 8.6kW, 208/120V, NEMA L21-30P Input, 48 Outlets (36 C13, 6 C19, 6 5-15/20R), 0U
- MPN: PDU3V6L2130
- UPC: 037332255686
- PPN: TRP-PDU3V6L2130
CAD
$1657.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
8.6kW 208/120V 3-Phase Basic PDU - 48 Outlets (36 C13, 6 C19, 6 5-15/20R), L21-30P Input, 6 ft. Cord, 70 in. 0U Rack, TAA
Features
- 8.6kW 208/120V Three-Phase Basic PDU
- Plug retention brackets with installation hardware
- Rack-mounting hardware
- Owner's manual
Documentation & Downloads
Specifications
Reference
| Product Warranty Period | 2-year limited warranty |
|---|
Performance
| PDU Type | Basic |
|---|---|
| PDU Input Voltage | 208V |
| Maximum Input Amps | 24A (agency de-rated to 24A continuous) |
| Output Capacity | 8.6kW (208V) total capacity; 13.9A (208V) max per output phase (L1-L2, L2-L3, L3-L1) / 16A (120V) max per output phase (L1, L2, L3); 12A max per C13 outlet; 16A max per 5-20R outlet |
| Overload Protection | Three 20A double-pole circuit breakers (1 per output phase) |
| Storage Temperature Range | -22° to 140°F (-30° to 60°C) |
| Operating Elevation | 0-10000 ft (0-3000 m) |
| Input Phase | 3-Phase |
|---|---|
| Recommended Electrical Service | Three-phase 30A 208V service |
| Frequency Compatibility | 50 / 60 Hz |
| Output Nominal Voltage | 208/120V |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Relative Humidity | 5% to 95% non-condensing |
Material
| Material of Construction | Metal |
|---|
Dimensions

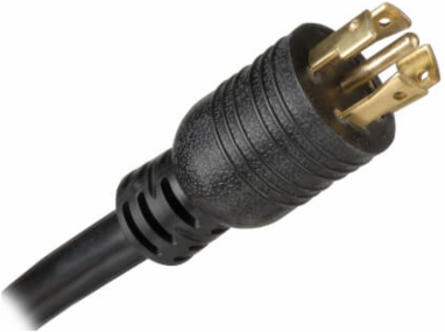

| Input Connection Type | NEMA L21-30P |
|---|---|
| Input Cord Length | 6 ft |

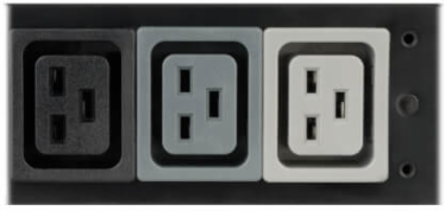

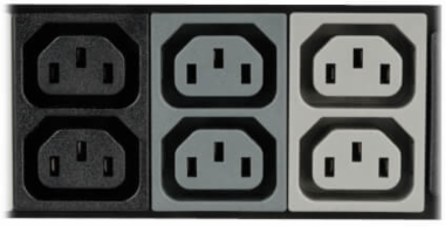

| Output Receptacles | (6) 5-15/20R; (36) C13; (6) C19 |

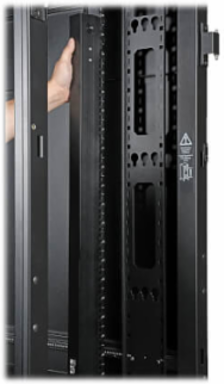

| Form Factors Supported | Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks |
| Unit Weight | 13.90 lb |
| PDU Plug Type | NEMA L21-30P |
|---|---|
| Output Receptacle Details | 5-15/20R outlets provide 120V output; C13 and C19 outlets provide 208V output; Compatible with Eaton Tripp Lite Power Cords |
| PDU Form Factor | Vertical (0U) |
| Unit Dimensions | 70.000 x 2.200 x 2.650 in |
