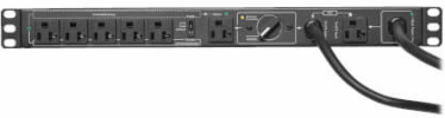

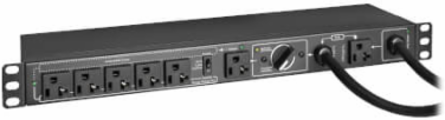

Tripp Lite PDUB201U PDU, Hot-Swap, Manual Bypass, Single-Phase, 100-125V, 6 Outlets, NEMA 5-20P Input, 1U
- MPN: PDUB201U
- UPC: 037332256201
- PPN: TRP-PDUB201U
CAD
$487.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
100-125V 16A Single-Phase Hot-Swap PDU with Manual Bypass - 6 NEMA 5-20R Outlets, 2 5-20P Inputs, 1U Rack/Wall
Features

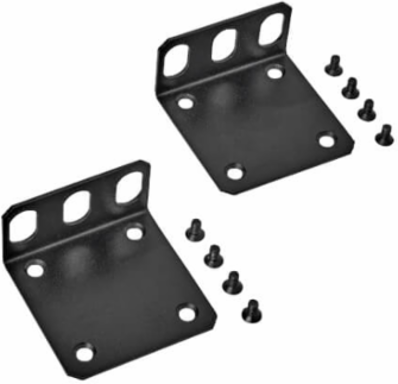

- Mounting hardware
- Owner's manual
Documentation & Downloads
Specifications
Dimensions

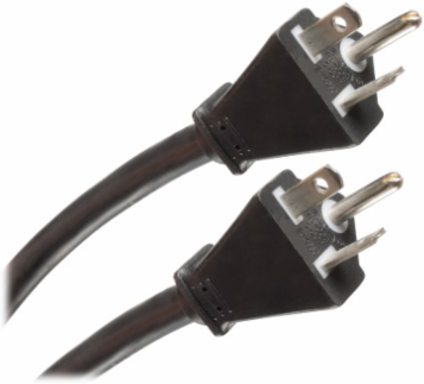

| Input Connection Type | (2) NEMA 5-20P |
|---|---|
| Input Cord Details | Utility input cable (10 ft / 3m) / UPS input cable (4 ft / 1.2m) |
| Output Receptacle Details | Set of 6 output receptacles are arranged in two groups to support the optional ECO Power-Saving feature; One MASTER-outlet provides optional current-sense capability that when enabled, automatically powers off the bank of 5 CONTROLLABLE GROUP-outlets when the device connected to the MASTER-outlet is powered off or enters a low power sleep mode consuming 20W or less (±5W) |
| Unit Dimensions | 1.730 x 17.240 x 3.940 in |
| PDU Form Factor | Horizontal (1U) |
| PDU Plug Type | (2) NEMA 5-20P |
|---|---|
| Input Cord Length | 10 ft |
| Output Receptacles | (6) 5-20R |
| Unit Weight | 5.2 lb |
Performance
| PDU Type | Hot-Swap |
|---|---|
| PDU Input Voltage | 100; 120; 125 V |
| Output Capacity Details | 2kW (125V), 1.92kW (120V), 1.6kW (100V) / 20A total capacity (Agency de-rated to 16A); 16A max per 5-15/20R outlet |
| Output Nominal Voltage | 100-125V |
| LED Indicators | Front panel LEDs report UTILITY Input Power ON (green), BYPASS-MODE Switch Setting (yellow), MASTER Outlet Power ON (green), CONTROLLABLE GROUP Outlets Power ON (green) |
| Storage Temperature Range | -22° to 122°F (-30° to 50°C) |
| Operating Elevation | 0-10000 ft. (0-3000 m) |
| Input Phase | Single-Phase |
|---|---|
| Maximum Input Amps | 16 A (Agency de-rated to 16A continuous) |
| Frequency Compatibility | 50 / 60 Hz |
| Switches | 2 position Manual Transfer switch offers Break-Before-Make transfer between UPS and Utility operating modes with less than 8 milliseconds transfer time; Additional switch offers ENABLE/DISABLE control of the ECO Power-Saving feature |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Relative Humidity | 5% to 95% non-condensing |
Material
| Material of Construction | Metal |
|---|
Reference
| Product Warranty Period | 2-year limited warranty |
|---|
