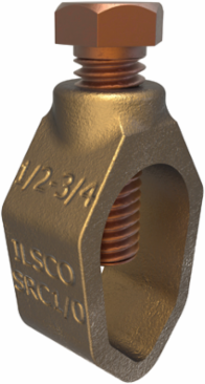

ILSCO SRC-1/0 Permaground Bronze Ground Rod Clamp, Conductor Range 1/0-10 Sol, Ground Rod Sizes 3/8 to 3/4in, UL, CSA
- MPN: SRC-1/0
- UPC: 783669001259
- PPN: ILC-SRC-1/0
CAD
$26.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Permaground Bronze Ground Rod Clamp, Conductor Range 1/0-10 Sol, Ground Rod Sizes 3/8 to 3/4in, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 1.861 in | 47.2694 mm
- Weight
- 0.156 lbs
Length1.043 in | 26.4922 mm
Width0.59 in
Dimensions
- Drive Size Main
- 1/2
- Height BX (IN)
- 2
- Length (mm)
- 26.4922
- Width BX (IN)
- 6.19
Drive Type MainExternal Hex
Height (mm)47.2694
Weight BX (LB)16
Testing Standards
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
UL / CULUS SpecificationUL 467 Listed
Additional Class Attributes
- Number of Conductors
- 1
- Wire Orientation
- Parallel
Number of Ports / Wireways1
Material and Finish
- Clamping Hardware Material
- Silicon bronze
- Material
- Bronze
Conductor MaterialCopper
Wire Binding Hardware MaterialSilicon bronze
Conductor Ranges
- Conductor Range Solid with Ground Rod
- 10 Sol
- Conductor Range Str with Ground Rod
- 1/0 Str - 10 Str
- Conductor Size with Ground Rod
- 8 Str, 7 Str, 6 Str, 5 Str, 10 Str, 10 Sol, 3 Str, 4 Str, 1 Str, 1/0 Str, 2 Str
- Ground Rod Size
- 1/2, 3/8, 5/8, 3/4
Conductor Range Solid with Rebar10 Sol
Conductor Range Str with Rebar1/0 Str - 10 Str
Conductor Size with Rebar3 Str, 1 Str, 7 Str, 8 Str, 10 Str, 10 Sol, 5 Str, 4 Str, 2 Str, 1/0 Str, 6 Str
Additional Technical Specifications
- Conductor Type
- Solid, Stranded
General
- Bag Quantity
- 1
- Direct Burial
- Yes
- NEMA Code
- S-573-2
Carton Quantity DescriptionSTD PACK QTY 50
Dual RatedNo
UPC Code78366900125
Color
- Color
- Bronze
