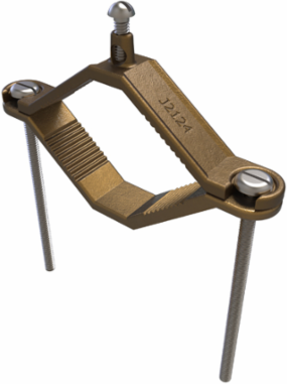

ILSCO J2124 Permaground Bronze Ground Clamp, Conductor Range 4-10, Pipe Sizes 2-1/2 to 4in
- MPN: J2124
- UPC: 783669010398
- PPN: ILC-J2124
CAD
$70.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Permaground Bronze Ground Clamp, Conductor Range 4-10, Pipe Sizes 2-1/2 to 4in
Documentation & Downloads
Specifications
Key Specifications
| Height | 7.23 in | 183.642 mm |
|---|---|
| Weight | 1.001 lbs |
| Length | 6.25 in | 158.75 mm |
|---|---|
| Width | 0.968 in | 24.5872 mm |
Dimensions
| Height BX (IN) | 6 |
|---|---|
| Length (mm) | 158.75 |
| Width (mm) | 24.5872 |
| Height (mm) | 183.642 |
|---|---|
| Width BX (IN) | 8 |
Testing Standards
| Prop65 Compliance | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov |
|---|---|
| UL / CULUS Specification | UL 467 Listed |
| UL Control Number | 8M24 |
|---|---|
| UL File Number | E207816 |
Additional Class Attributes
| Number of Conductors | 1 |
|---|
| Wire Orientation | Parallel |
|---|
Material and Finish
| Conductor Material | Copper |
|---|
| Material | Bronze |
|---|
Conductor Ranges
| Conductor Range CU Solid (Primary, run, main, line) | 4 Sol - 10 Sol |
|---|---|
| NPS/IPS Pipe Size | 4, 3-7/8, 3-3/4, 3-5/8, 3-1/2, 2-1/2, 2-5/8, 2-3/4, 2-7/8, 3-3/8, 3-1/8, 3, 3-1/4 |
| Conductor Range CU Stranded (Primary, run, main, line) | 4 Str - 10 Str |
|---|
Additional Technical Specifications
| Conductor Type | Solid, Stranded |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Direct Burial | No |
| NEMA Code | S-573-2 |
| Carton Quantity Description | STD PACK QTY 4 |
|---|---|
| Dual Rated | No |
| UPC Code | 78366901039 |
