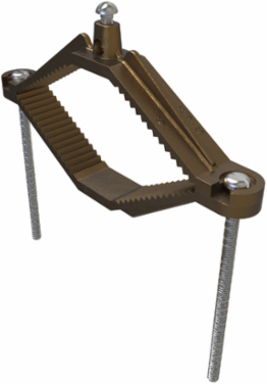

ILSCO J6 Permaground Bronze Ground Clamp, Conductor Range 4-10, Pipe Sizes 4-1/2 to 6in
- MPN: J6
- UPC: 783669010381
- PPN: ILC-J6
CAD
$116.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Permaground Bronze Ground Clamp, Conductor Range 4-10, Pipe Sizes 4-1/2 to 6in
Documentation & Downloads
Specifications
Key Specifications
- Height
- 7.498 in | 190.4492 mm
- Weight
- 1.325 lbs
Length7.813 in | 198.4502 mm
Width0.938 in | 23.8252 mm
Dimensions
- Height BX (IN)
- 6
- Length (mm)
- 198.4502
- Width (mm)
- 23.8252
Height (mm)190.4492
Width BX (IN)8
Testing Standards
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL / CULUS Specification
- UL 467 Listed
UL Control Number8M24
UL File NumberE207816
Additional Class Attributes
- Connection
- Mechanical
- Wire Orientation
- Parallel
Number of Conductors1
Material and Finish
- Conductor Material
- Copper
MaterialBronze
Conductor Ranges
- Conductor Range CU Solid (Primary, run, main, line)
- 4 Sol - 10 Sol
- NPS/IPS Pipe Size
- 6, 4-1/2, 4-5/8, 4-3/4, 4-7/8, 5, 5-1/8, 5-1/4, 5-7/8, 5-1/2, 5-3/8, 5-3/4, 5-5/8
Conductor Range CU Stranded (Primary, run, main, line)4 Str - 10 Str
Additional Technical Specifications
- Conductor Type
- Solid, Stranded
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-573-2
Carton Quantity DescriptionSTD PACK QTY 10
Dual RatedNo
UPC Code78366901038
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
