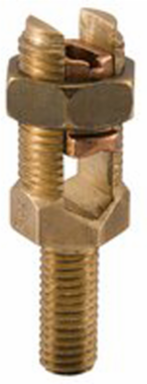

ILSCO SPDL-2 Permaground Bronze Service Post Connector, Male, Conductor Range 5-10 Sol, 5/16-18 x 1in Stud Size, Long Stud, Double Conductor, UL, CSA
- MPN: SPDL-2
- UPC: 783669233025
- PPN: ILC-SPDL-2
CAD
$105.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Permaground Bronze Service Post Connector, Male, Conductor Range 5-10 Sol, 5/16-18 x 1in Stud Size, Long Stud, Double Conductor, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Weight
- 0.1525 lbs
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Drive Size Main
- 17/32, 23/32
- Height BX (IN)
- 3.75
- Weight BX (LB)
- 7.82
Drive Type MainExternal Hex
Mounting Bolt/Stud Size (mm)1311097.2
Width BX (IN)6
Testing Standards
- CSA File Number
- AP-100973-1
- UL Control Number
- 8M24
- UL File Number
- E158587
Prop65 ComplianceWARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
UL / CULUS SpecificationUL 467 Listed, UL 486A/B Listed
Additional Class Attributes
- Connection
- Mechanical
- Number of Poles
- 1
Number of Conductors2
Number of Ports / Wireways1
Material and Finish
- Conductor Material
- Copper
MaterialBronze
Conductor Ranges
- Conductor Range CU Solid (Primary, run, main, line)
- 4 Sol - 10 Sol
Conductor Range CU Stranded (Primary, run, main, line)5 Str - 10 Str
Additional Technical Specifications
- Conductor Type
- Solid, Stranded
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-3
Carton Quantity DescriptionSTD PACK QTY 50
Dual RatedNo
UPC Code78366923302
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 5/16-18
Number of Wire Binding Screws per Port1
Color
- Color
- Bronze
Environment and Temperature
- Temperature Rating
- 90°C
