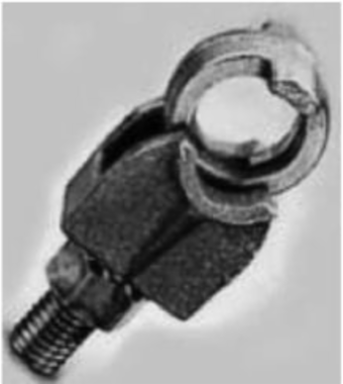

ILSCO LSN-035N Permaground Copper Eye-Bolt Terminal, Conductor Range 350-2 Sol, Up to 1/4in Mounting Surface

MPN: LSN-035N
UPC: 783669006193
PPN: ILC-LSN-035N
UNSPSC: 39121408

$113.80

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Permaground Eye-Bolt Terminal, Mechanical connection, Copper/Aluminum Bronze Alloy material, Copper Primary Conductor 350 kcmil - 2 Str and 4/0 Sol - 2 Sol, 1 conductors, 1 ports/wireways, Drive Type Main 3/4 External Hex, primary color Copper, up to 1/4 in mounting surface,

Documentation & Downloads

Specifications

Key Specifications

UPC Code	78366900619
Dual Rated	FALSE
Conductor Range CU Solid (Primary, run, main, line)	4/0 Sol - 2 Sol
Clamping Bolt Size	1/2/2020
Drive Type Main	External Hex
Length (IN)	1.25
Height (IN)	3.063
Material	Copper/Aluminum Bronze Alloy
Color	Copper
Prop65 Compliance	This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
Conductor Type	Solid,Stranded
Number of Ports / Wireways	1
Wire Orientation	Parallel

UNSPSC Code	39121408
Conductor Range CU Stranded (Primary, run, main, line)	350 kcmil - 2 Str
Conductor Size CU (Primary, run, main, line)	4/0 Sol,3/0 Sol,2/0 Sol,1/0 Sol,1 Sol,2 Sol,350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str
Drive Size Main	4-Mar
Number of Wire Binding Screws per Port	0
Width (IN)	1.313
Weight (LB)	1.125
Conductor Material	Copper
Direct Burial	FALSE
Connection	Mechanical
Number of Conductors	1
Number of Ports Main	1
Bag Quantity	1
