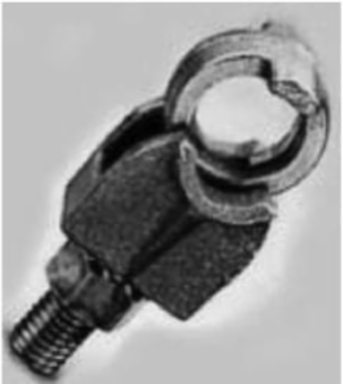

ILSCO LSN-100NE Permaground Copper Eye-Bolt Terminal, Conductor Range 1000-2/0 Sol, 1/4-3/4in Mounting Surface
- MPN: LSN-100NE
- UPC: 783669006315
- PPN: ILC-LSN-100NE
- UNSPSC: 39121408
CAD
$272.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Permaground Eye-Bolt Terminal, Mechanical connection, Copper/Aluminum Bronze Alloy material, Copper Primary Conductor 1000 kcmil - 2/0 Str and 4/0 Sol - 2/0 Sol, 1 conductors, 1 ports/wireways, Drive Type Main 3/4 External Hex, primary color Copper,
Documentation & Downloads
Specifications
Key Specifications
- UPC Code
- 78366900631
- Dual Rated
- FALSE
- Conductor Range CU Solid (Primary, run, main, line)
- 4/0 Sol - 2/0 Sol
- Clamping Bolt Size
- 1/2/2020
- Drive Type Main
- External Hex
- Length (IN)
- 1.719
- Height (IN)
- 4.5
- Material
- Copper/Aluminum Bronze Alloy
- Color
- Copper
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- Conductor Type
- Solid,Stranded
- Number of Ports / Wireways
- 1
- Wire Orientation
- Parallel
UNSPSC Code39121408
Conductor Range CU Stranded (Primary, run, main, line)1000 kcmil - 2/0 Str
Conductor Size CU (Primary, run, main, line)4/0 Sol,3/0 Sol,2/0 Sol,1000 kcmil,950 kcmil,900 kcmil,850 kcmil,800 kcmil,750 kcmil,700 kcmil,650 kcmil,600 kcmil,550 kcmil,500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str
Drive Size Main4-Mar
Number of Wire Binding Screws per Port0
Width (IN)1.688
Weight (LB)1.5
Conductor MaterialCopper
Direct BurialFALSE
ConnectionMechanical
Number of Conductors1
Number of Ports Main1
Bag Quantity1
