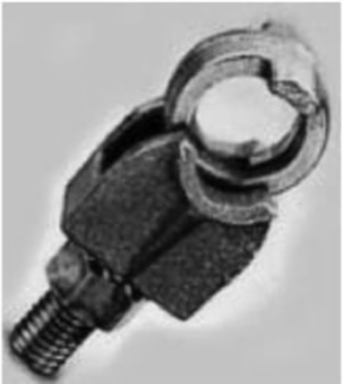

ILSCO LS-C1E Permaground Copper Eye-Bolt Terminal, Conductor Range 1-10 Sol, 1/4-3/4in Mounting Surface

MPN: LS-C1E
UPC: 783669006131
PPN: ILC-LS-C1E
UNSPSC: 39121408

$96.88

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Permaground Eye-Bolt Terminal, Mechanical connection, Copper/Aluminum Bronze Alloy material, Copper Primary Conductor 1 Str - 10 Str and 1 Sol - 10 Sol, 1 conductors, 1 ports/wireways, Drive Type Main 9/16 External Hex, primary color Copper,

Documentation & Downloads

Specifications

Key Specifications

UPC Code	78366900613
Dual Rated	FALSE
Conductor Range CU Solid (Primary, run, main, line)	1 Sol - 10 Sol
Clamping Bolt Size	3/8/2020
Drive Type Main	External Hex
Length (IN)	1.063
Height (IN)	2.375
Material	Copper/Aluminum Bronze Alloy
Color	Copper
Prop65 Compliance	This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
Conductor Type	Solid,Stranded
Number of Ports / Wireways	1
Wire Orientation	Parallel

UNSPSC Code	39121408
Conductor Range CU Stranded (Primary, run, main, line)	1 Str - 10 Str
Conductor Size CU (Primary, run, main, line)	1 Sol,2 Sol,3 Sol,4 Sol,5 Sol,6 Sol,7 Sol,8 Sol,10 Sol,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str
Drive Size Main	16-Sep
Number of Wire Binding Screws per Port	0
Width (IN)	0.875
Weight (LB)	0.5
Conductor Material	Copper
Direct Burial	FALSE
Connection	Mechanical
Number of Conductors	1
Number of Ports Main	1
Bag Quantity	1
