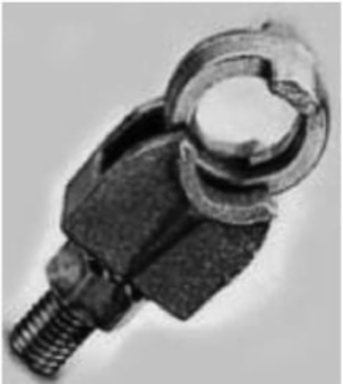

Permaground Copper Eye-Bolt Terminal, Conductor Range 350-2 Sol, 1/4-3/4in Mounting Surface
ILSCO

ILSCO LSN-035NE Permaground Copper Eye-Bolt Terminal, Conductor Range 350-2 Sol, 1/4-3/4in Mounting Surface

  • MPN: LSN-035NE
  • UPC: 783669006261
  • PPN: ILC-LSN-035NE
  • UNSPSC: 39121408

CAD

$123.84

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Permaground Eye-Bolt Terminal, Mechanical connection, Copper/Aluminum Bronze Alloy material, Copper Primary Conductor 350 kcmil - 2 Str and 4/0 Sol - 2 Sol, 1 conductors, 1 ports/wireways, Drive Type Main 3/4 External Hex, primary color Copper, 1/4 in to 3/4 in mounting surface,

Documentation & Downloads

Specifications

Key Specifications

UPC Code
78366900626
Dual Rated
FALSE
Conductor Range CU Solid (Primary, run, main, line)
4/0 Sol - 2 Sol
Clamping Bolt Size
1/2/2020
Drive Type Main
External Hex
Length (IN)
1.25
Height (IN)
3.313
Material
Copper/Aluminum Bronze Alloy
Color
Copper
Prop65 Compliance
This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
Conductor Type
Solid,Stranded
Number of Ports / Wireways
1
Wire Orientation
Parallel
UNSPSC Code39121408
Conductor Range CU Stranded (Primary, run, main, line)350 kcmil - 2 Str
Conductor Size CU (Primary, run, main, line)4/0 Sol,3/0 Sol,2/0 Sol,1/0 Sol,1 Sol,2 Sol,350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str
Drive Size Main4-Mar
Number of Wire Binding Screws per Port0
Width (IN)1.313
Weight (LB)1.125
Conductor MaterialCopper
Direct BurialFALSE
ConnectionMechanical
Number of Conductors1
Number of Ports Main1
Bag Quantity1
