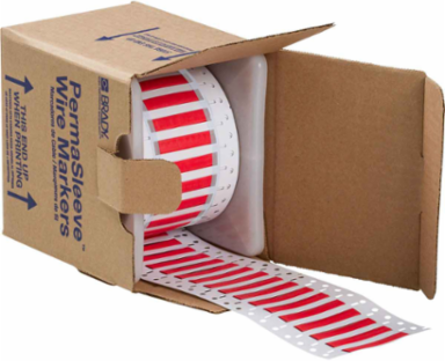

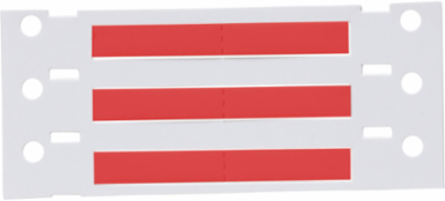

Brady 2LSZH-125-2-RD-2 PermaSleeve Low Smoke Zero Halogen Wire Marking Sleeves, 0.125" Dia x 1" W, 20 AWG, Red
Brady 2LSZH-125-2-RD-2 PermaSleeve Low Smoke Zero Halogen Wire Marking Sleeves, 0.125" Dia x 1" W, 20 AWG, Red
- MPN: 2LSZH-125-2-RD-2
- UPC: 754473549299
- PPN: BRD-2LSZH-125-2-RD-2
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2609.59/ EA
Description
The B-7641 Heat Shrink Sleeve from Brady® is a low smoke, halogen free identification material used for wire and cable identification.
Features
- Made of halogen-free, flexible flame-retardant, heat-shrinkable polyolefin tubing, offering fire safety properties and minimal smoke emission
- Compatible with the most stringent requirements in the market today to enhance fire safety needs
- 2:1 heat-shrink ratio
- Use with thermal transfer printers and Brady's R6000 series halogen-free ribbon
Specifications
Specifications
- Applications
- Electrical Labeling; Wire and Cable Labeling
- Bulk Part
- Not a Bulk Part
- Enables Industry Compliance
- BS6853 (1999) vehicle category 1a; EN 45545-2, Requirement Set R22/R23, Vehicle Category HL3
- For Use with Printer
- BBP®72 Label Printer; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
- Primary Noun, Basic Function
- Heat Shrink Tubing
- Printable Sides
- Double-Side Printable
- Quantity per Roll
- 5000
- Recommended Ribbon
- IP-R6007; R6007
- Sleeve Slits
- Yes
- Trade Name
- PermaSleeve®
- Label Properties
- Heat Shrink Sleeves
- Material Properties
- Flame-retardant; Heat-shrinkable; Low-smoke; Zero-halogen
- SAP B-Number
- B-7641
- Diameter as Supplied (mm/cm/m)
- 3.2 mm
- Dimensions (Metric)
- 6 mm H
- Height (in/ft/yd)
- 0.235 in
- Maximum Service Temperature °C
- 105 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.11 in
- Maximum Wire Gauge
- 16 AWG
- Minimum Service Temperature °F
- -67 °F
- Minimum Wire Diameter (mm/cm/m)
- 1.6 mm
- Recovered Diameter (in/ft/yd)
- 0.062 in
- Recovered Wall Thickness (in/ft/yd)
- 0.025 in
- Roll Width (mm/cm/m)
- 50.8 mm
- Sleeve Size (mm/cm/m)
- 3.2 mm Dia x 25.4 mm W
- Sleeve Width (mm/cm/m)
- 25.4 mm
- Web Width (in/ft/yd)
- 3.49 in
- Wire Gauge Range
- 20 AWG to 16 AWG
Brand NameBrady®
ColorRed
FinishMatte
Label/Media FormatRoll
Print TechnologyThermal Transfer
Printer and Label ApplicationsWire & Cable
Quantity per Row2
Shrink Ratio2:1
Suggested Ribbon SeriesR6000 Halogen Free; R6600
Brady Material NumberB-7641
MaterialHeat-shrink Polyolefin
Resistance PropertiesChemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Self-Extinguishing; UV-Resistant; Weather-Resistant
Diameter as Supplied (in/ft/yd)0.125 in
Dimensions0.235 in H
Dimensions 20.235 in H
Height (mm/cm/m)6 mm
Maximum Service Temperature °F221 °F
Maximum Wire Diameter (mm/cm/m)2.8 mm
Minimum Service Temperature °C-55 °C
Minimum Wire Diameter (in/ft/yd)0.062 in
Minimum Wire Gauge20 AWG
Recovered Diameter (mm/cm/m)1.6 mm
Roll Width (in/ft/yd)2 in
Sleeve Size (in/ft/yd)0.125 in Dia x 1 in W
Sleeve Width (in/ft/yd)1 in
Vertical Repeat0.5 in
Wire Diameter Range0.062 in to 0.11 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
