Brady LSZH-2000-2-WT-S-2 PermaSleeve Low Smoke Zero Halogen Wire Marking Sleeves, Roll of 100 Each, 2" Dia x 1" W
- MPN: LSZH-2000-2-WT-S-2
- UPC: 754473549107
- PPN: BRD-LSZH-2000-2-WT-S-2
- UNSPSC: 55121612
CAD
$351.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The B-7641 Heat Shrink Sleeve from Brady® is a low smoke, halogen free identification material used for wire and cable identification.
Features
- Made of halogen-free, flexible flame-retardant, heat-shrinkable polyolefin tubing, offering fire safety properties and minimal smoke emission
- Compatible with the most stringent requirements in the market today to enhance fire safety needs
- 2:1 heat-shrink ratio
- Use with thermal transfer printers and Brady's R6000 series halogen-free ribbon
Documentation & Downloads
Specifications
Key Specifications
| Applications | Electrical Labeling; Wire and Cable Labeling |
|---|---|
| Bulk Part | Not a Bulk Part |
| Enables Industry Compliance | BS6853 (1999) vehicle category 1a; EN 45545-2, Requirement Set R22/R23, Vehicle Category HL3 |
| For Use with Printer | BBP®72 Label Printer; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer |
| Primary Noun, Basic Function | Heat Shrink Tubing |
| Printable Sides | Single-Side Printable |
| Quantity per Roll | 100 |
| Recommended Ribbon | IP-R6007; R6007 |
| Sleeve Slits | Yes |
| Trade Name | PermaSleeve® |
| Label Properties | Heat Shrink Sleeves |
| Material Properties | Flame-retardant; Heat-shrinkable; Low-smoke; Zero-halogen |
| SAP B-Number | B-7641 |
| Diameter as Supplied (mm/cm/m) | 50.8 mm |
| Dimensions (Metric) | 80.4 mm H |
| Height (in/ft/yd) | 3.165 in |
| Maximum Service Temperature °C | 105 °C |
| Maximum Wire Diameter (in/ft/yd) | 1.95 in |
| Minimum Service Temperature °C | -55 °C |
| Minimum Wire Diameter (in/ft/yd) | 1 in |
| Recovered Diameter (in/ft/yd) | 1 in |
| Recovered Wall Thickness (in/ft/yd) | 0.038 in |
| Roll Width (mm/cm/m) | 50.8 mm |

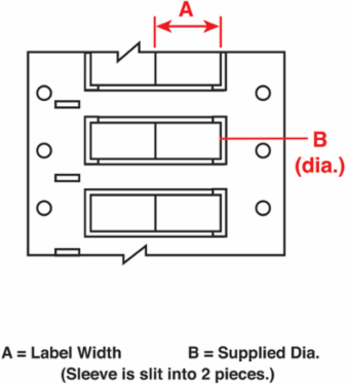

| Sleeve Size (mm/cm/m) | 50.8 mm Dia x 25.4 mm W |
| Sleeve Width (mm/cm/m) | 25.4 mm |
| Web Width (in/ft/yd) | 3.49 in |
| Brand Name | Brady® |
|---|---|
| Color | White |
| Finish | Matte |
| Label/Media Format | Roll |
| Print Technology | Thermal Transfer |
| Printer and Label Applications | Wire & Cable |
| Quantity per Row | 2 |
| Shrink Ratio | 2:1 |
| Suggested Ribbon Series | R6000 Halogen Free; R6600 |
| Brady Material Number | B-7641 |
| Material | Heat-shrink Polyolefin |
| Resistance Properties | Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Self-Extinguishing; UV-Resistant; Weather-Resistant |
| Diameter as Supplied (in/ft/yd) | 2 in |
| Dimensions | 3.165 in H |
| Dimensions 2 | 3.165 in H |
| Height (mm/cm/m) | 80.4 mm |
| Maximum Service Temperature °F | 221 °F |
| Maximum Wire Diameter (mm/cm/m) | 49.5 mm |
| Minimum Service Temperature °F | -67 °F |
| Minimum Wire Diameter (mm/cm/m) | 25.4 mm |
| Recovered Diameter (mm/cm/m) | 25.4 mm |
| Roll Width (in/ft/yd) | 2 in |
| Sleeve Size (in/ft/yd) | 2 in Dia x 1 in W |
| Sleeve Width (in/ft/yd) | 1 in |
| Vertical Repeat | 4 in |
| Wire Diameter Range | 1 in to 1.95 in |
Regulatory Information
| Contains CA PROP 65 Substance | No - Does not contain |
|---|---|
| DOT Regulated Product | No = not regulated by DOT |
| Contains CA PROP 65 Substance | No |
|---|---|
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
