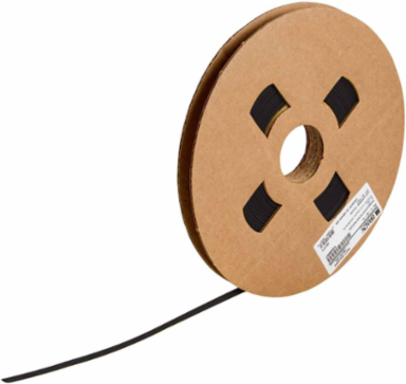

Brady PS-C-094-BK PermaSleeve Polyolefin Wire Marking Sleeves, 0.094 " Dia x 75' L
- MPN: PS-C-094-BK
- UPC: 754473897697
- PPN: BRD-PS-C-094-BK
- UNSPSC: 55121612
CAD
$127.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.
Features
- 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
- Fade-resistant and smudge-proof for superior aesthetic appearance
- Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
- Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant;and UL Recognized
Documentation & Downloads
Specifications
Key Specifications
| Applications | Wire and Cable Labeling |
|---|---|
| Color | Black |
| Finish | Matte |
| Label/Media Format | Roll |
| Print Technology | Thermal Transfer |
| Printer and Label Applications | Wire & Cable |
| Shrink Ratio | 3:1 |
| Trade Name | PermaSleeve® |
| Label Properties | Heat Shrink Sleeves |
| Material Properties | Flame-retardant; Heat-shrinkable |
| SAP B-Number | B-342 |
| Diameter as Supplied (mm/cm/m) | 2.4 mm |
| Dimensions (Metric) | 4.6 mm H |
| Height (in/ft/yd) | 0.182 in |
| Maximum Service Temperature °C | 135 °C |
| Maximum Wire Diameter (in/ft/yd) | 0.08 in |
| Maximum Wire Gauge | 20 AWG |
| Minimum Service Temperature °F | -67 °F |
| Minimum Wire Diameter (mm/cm/m) | 0.6 mm |
| Recovered Diameter (in/ft/yd) | 0.023 in |
| Recovered Wall Thickness (in/ft/yd) | 0.024 in |
| Roll Length (in/ft/yd) | 75 ft |
| Sleeve Size (in/ft/yd) | 0.094 in Dia x 75 ft L |
| Wire Diameter Range | 0.023 in to 0.08 in |
| Brand Name | Brady® |
|---|---|
| Enables Industry Compliance | Method 215; MIL-DTL-23053/5 Class 1; MIL-M-81531; MIL-STD-202F; RoHS Compliant; UL 224 |
| For Use with Printer | BBP®72 Label Printer; BradyPrinter i7100; THT 3" Core Printer |
| Primary Noun, Basic Function | Heat Shrink Tubing |
| Printable Sides | Single-Side Printable |
| Recommended Ribbon | IP-R6700-WT; R6700-WT |
| Suggested Ribbon Series | R4502S; R6700 |
| Brady Material Number | B-342 |
| Material | Heat-shrink Polyolefin |
| Resistance Properties | Chemical-Resistant; Smear-Resistant |
| Diameter as Supplied (in/ft/yd) | 0.094 in |
| Dimensions | 0.182 in H |
| Dimensions 2 | 0.182 in H |
| Height (mm/cm/m) | 4.6 mm |
| Maximum Service Temperature °F | 275 °F |
| Maximum Wire Diameter (mm/cm/m) | 2 mm |
| Minimum Service Temperature °C | -55 °C |
| Minimum Wire Diameter (in/ft/yd) | 0.023 in |
| Minimum Wire Gauge | 28 AWG |
| Recovered Diameter (mm/cm/m) | 0.6 mm |
| Recovered Wall Thickness (mm/cm/m) | 0.61 mm |
| Roll Length (mm/cm/m) | 22.86 m |
| Sleeve Size (mm/cm/m) | 2.4 mm Dia x 22.86 m L |
| Wire Gauge Range | 28 AWG to 20 AWG |
Regulatory Information
| Contains CA PROP 65 Substance | No - Does not contain |
|---|---|
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliance | Pass 2011/65/EU(Pass 2015/863) |
| Contains 3TG Mineral | Not Applicable |
| Contains CA PROP 65 Substance | No |
|---|---|
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | Yes |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
