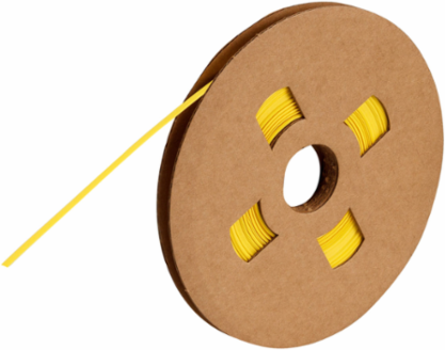

Brady PS-C-094-YL PermaSleeve Polyolefin Wire Marking Sleeves, 0.094" Dia x 75' L, Yellow
- MPN: PS-C-094-YL
- UPC: 754473897598
- PPN: BRD-PS-C-094-YL
- UNSPSC: 55121612
CAD
$127.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
PermaSleeve Heat Shrink Tubing is engineered for thermal transfer or dot matrix printing and is ideal for use in wire identification.
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Wire and Cable Labeling
- Color
- Yellow
- Finish
- Matte
- Label/Media Format
- Roll
- Print Technology
- Thermal Transfer
- Printer and Label Applications
- Wire & Cable
- Shrink Ratio
- 3:1
- Trade Name
- PermaSleeve®
- Label Properties
- Heat Shrink Sleeves
- Material Properties
- Flame-retardant; Heat-shrinkable
- SAP B-Number
- B-342
- Diameter as Supplied (mm/cm/m)
- 2.4 mm
- Dimensions (Metric)
- 4.6 mm H
- Height (in/ft/yd)
- 0.182 in
- Maximum Service Temperature °C
- 135 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.08 in
- Maximum Wire Gauge
- 20 AWG
- Minimum Service Temperature °F
- -67 °F
- Minimum Wire Diameter (mm/cm/m)
- 0.6 mm
- Recovered Diameter (in/ft/yd)
- 0.023 in
- Recovered Wall Thickness (in/ft/yd)
- 0.024 in
- Roll Length (in/ft/yd)
- 75 ft
- Sleeve Size (in/ft/yd)
- 0.094 in Dia x 75 ft L
- Wire Diameter Range
- 0.023 in to 0.08 in
Brand NameBrady®
Enables Industry ComplianceMethod 215; Method 215K; MIL-DTL-23053/5 Class 1; MIL-M-81531; MIL-STD-202; MIL-STD-202F; RoHS Compliant; UL 224
For Use with PrinterBBP®72 Label Printer; BradyPrinter i7100; THT 3" Core Printer
Primary Noun, Basic FunctionHeat Shrink Tubing
Printable SidesSingle-Side Printable
Recommended RibbonIP-R6606; R6606
Suggested Ribbon SeriesR4300; R5000; R6600
Brady Material NumberB-342
MaterialHeat-shrink Polyolefin
Resistance PropertiesChemical-Resistant; Smear-Resistant
Diameter as Supplied (in/ft/yd)0.094 in
Dimensions0.182 in H
Dimensions 20.182 in H
Height (mm/cm/m)4.6 mm
Maximum Service Temperature °F275 °F
Maximum Wire Diameter (mm/cm/m)2 mm
Minimum Service Temperature °C-55 °C
Minimum Wire Diameter (in/ft/yd)0.023 in
Minimum Wire Gauge28 AWG
Recovered Diameter (mm/cm/m)0.6 mm
Recovered Wall Thickness (mm/cm/m)0.61 mm
Roll Length (mm/cm/m)22.86 m
Sleeve Size (mm/cm/m)2.4 mm Dia x 22.86 m L
Wire Gauge Range28 AWG to 20 AWG
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
