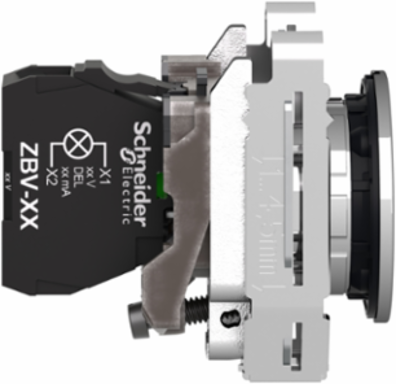

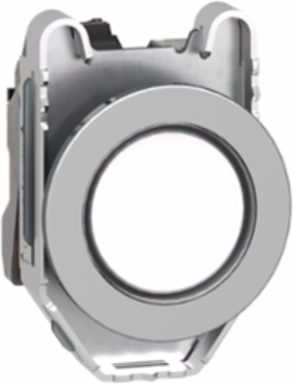

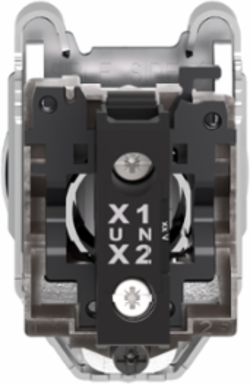

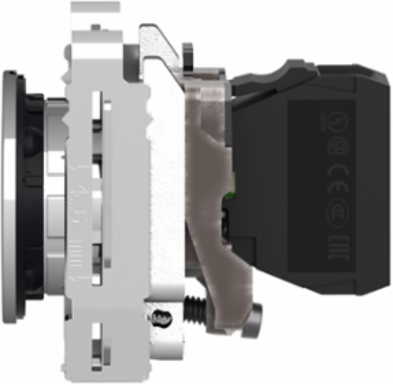

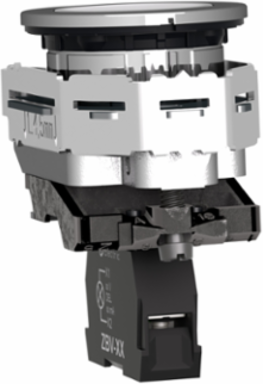

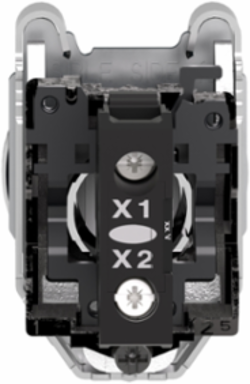

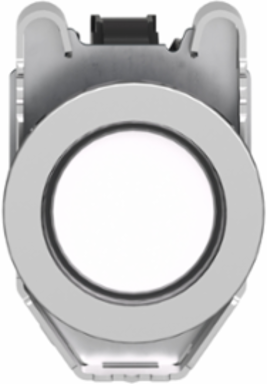

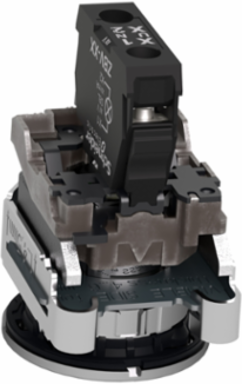

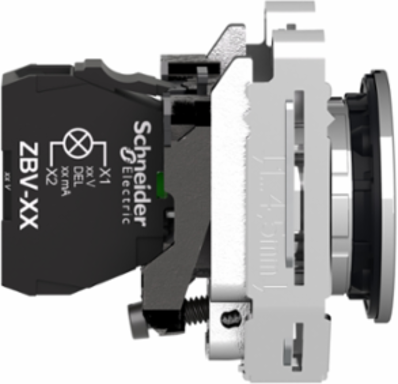

Schneider Electric XB4FVB1 Harmony XB4 30mm White Pilot Light, IP66, 24V AC/DC, Universal LED
- MPN: XB4FVB1
- PPN: SCH-XB4FVB1
CAD
$59.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Harmony XB4 30mm White Pilot Light, IP66, 24V AC/DC, Universal LED
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, France, United States
Physical Attributes
- Cap Operator Or Lens Color
- white

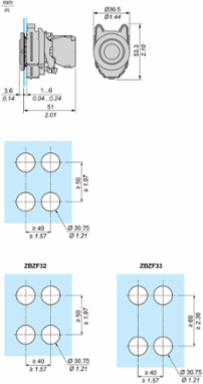

- Cad Overall Height
- 36.6 mm
Cad Overall Depth53.6 mm
Cad Overall Width36.6 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- no, 1
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Cap Operator Or Lens Color
- white
- [Us] Rated Supply Voltage
- 24 V, 24 V AC/DC 50/60 Hz
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1301915049, 0.1 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.8 kg CO2 eq., 0.8179629854
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Product Repair Index Dam Doc
- XB4BS8442-ENVREPAIR-A-EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Average Percentage Of Recycled Metal Content
- 17 %
- Bezel Material
- chromium plated metal
- Compatibility Code
- XB4
- Device Short Name
- XB4F
- Electromagnetic Emission
- class B IEC 55011
- Fixing Mode
- by screw
- Head Type
- built-in-flush
- Light Source
- universal LED
- Operator Additional Information
- with plain lens
- Product Or Component Type
- pilot light
- Protective Treatment
- TH
- Resistance To Electromagnetic Fields
- 10 V/m IEC 61000-4-3
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
- Returnability
- Yes
- Service Life
- 100000 h at rated voltage and 25 °C
- Signalling Type
- steady
- Supply Voltage Limits
- 19.2-30 V DC21.6-26.4 V AC
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Vibration Resistance
- 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-62 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
- Connections Terminals 8 Connections Terminals
- screw clamp terminals
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- XB4 plain lens modular green pilot light is supplied with 24V AC/DC, uses an integral LED. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination.This pushbutton power consumption is 0.432W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- Package Weight(Lbs)
- 109.0 g
- Take-back
- No
- Customs Code
- 8531809051
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Shape Of Screw Headcross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
Supply Voltage24 V
Certificate AgencyUL Listed, CSA, CCC, EAC
Carbon Footprint Of The Distribution Phase [A4]0.0142533374, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0201914563
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]17 kg CO2 eq., 16.7266901408
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2308026EN
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Average Percentage Of Recycled Plastic Content36 %
Bulb Baseintegral LED
Current Consumption18 mA
Electrical Shock Protection Classclass I conforming to IEC 60536
Fixing Collar Materialzamak
Gcr BridgeXB4FVCUST01
Important MessageA change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Mounting Diameter30.5 mm
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Repair IndexA
Range Of ProductHarmony XB4
Resistance To Electrostatic Discharge6 kV on contact (on metal parts) IEC 61000-4-28 kV in free air (in insulating parts) IEC 61000-4-2
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity1
Shape Of Signaling Unit Headround
Software Versionv5.9.4
Sustainable PackagingYes
Total Lifecycle Carbon Footprint18 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP2308026EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Recyclability Potential In %85
Cap/Operator Or Lens Colourwhite
Nbr. Of Units In Pkg.1
Product Repair Index - Dam Document IdXB4BS8442-ENVREPAIR-A-EN
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-55 °C, -40-55 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529IP69K ISO 20653Type 13 UL 50 E, Type 12 UL 50 E, Type 4 UL 50 E, Type 4X UL 50 E
- Recycled Metal Content At Cr Level
- 17 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2308026EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2308026EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint17.7092894248
Environmental DisclosureENVPEP2308026EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- pilot light
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC000272
ETIM 9EC000272
Surge Protection And Filtering Attributes
- Surge Withstand
- 1 kV IEC 61000-4-5
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- complete product
