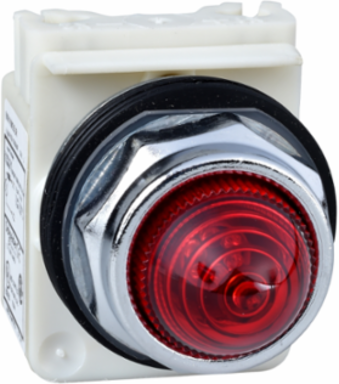

Schneider Electric 9001KP38LRR9 Harmony 9001K Red Domed LED Pilot Light, 30 mm, 120V AC/DC, IP66
Schneider Electric 9001KP38LRR9 Harmony 9001K Red Domed LED Pilot Light, 30 mm, 120V AC/DC, IP66
- MPN: 9001KP38LRR9
- UPC: 785901033035
- PPN: SCH-9001KP38LRR9
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$240.83/ EA
Description
This Harmony 9001K, red pilot light with integral LED and plastic dome is supplied with 110V AC/DC. It has a chromium-plated metal bezel. This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Specifications
Environment
- Product Certifications
- UL 508 || NEMA
- Standards
- EN/IEC 60947-1 || JIS C 852 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || JIS C8201-5-1 || UL 508 || JIS C8201-1
- Vibration Resistance
- 7 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529
Overvoltage Categoryclass II IEC 61140
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Complementary
- [Us] Rated Supply Voltage
- 120 V
- Short-Circuit Protection
- 10 A cartridge fuse IEC 60947-5-1
- Light Source
- LED
- Mounting Diameter
- 30 mm
- Shape Of Signaling Unit Head
- round
- Net Weight
- 0.134 kg
- Size
- 30 mm
- Device Presentation
- complete product
- Connections - Terminals
- screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
- [Ui] Rated Insulation Voltage
- 250 V 2)IEC 60947-1
- Light Source Colour
- red
- Tightening Torque
- 0.8-0.8 N.m IEC 60947-1
- Lens Type
- domed plastic
- Cad Overall Depth
- 42 mm
[Us] Rated Supply Voltage120 V AC/DC
Lens Materialpolycarbonate
Light Block Supplydirect 120 V AC/DC
[Ith] Conventional Free Air Thermal Current10 A
Cap/Operator Or Lens Colourred
[Uimp] Rated Impulse Withstand Voltage2.5 kV IEC 60947-1
Cad Overall Height70 mm
Lens Typedomed
Light Sourcered LED
Bezel Materialmetal
Operating Positionany position
Cad Overall Width54 mm
Shape Of Screw Headcross slotted
Bulb BaseBA 9s
Specifications
- Range Of Product
- Harmony 9001K
- Device Short Name
- 9001K
Product Or Component Typepilot light
