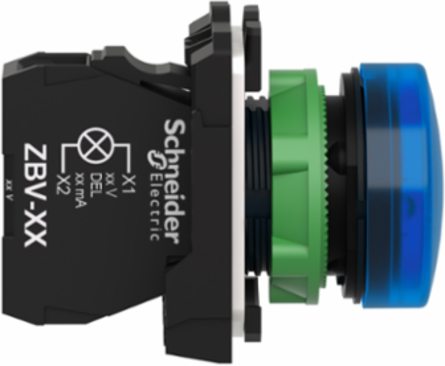

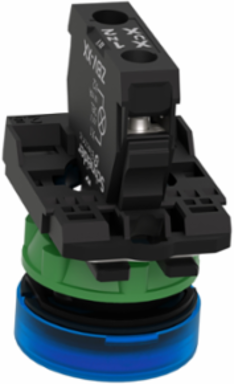

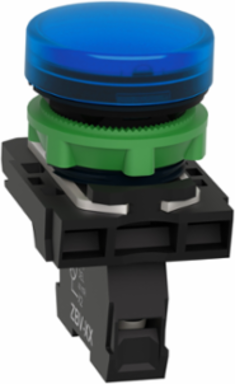

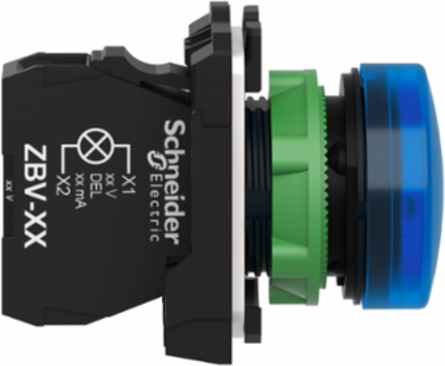

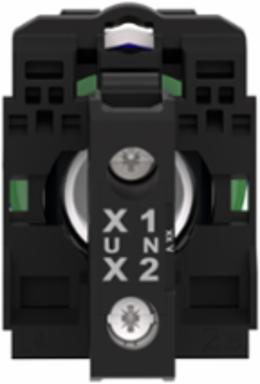

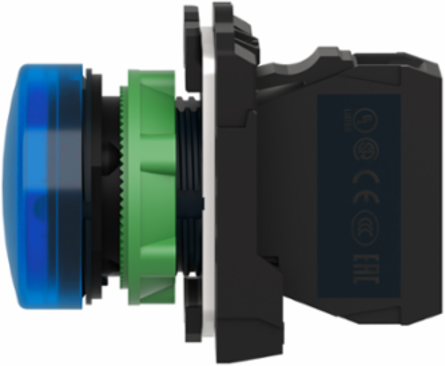

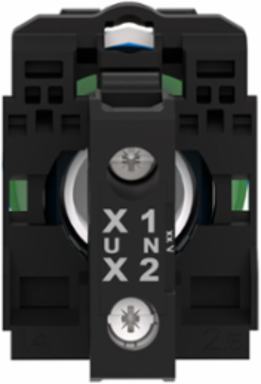

Schneider Electric XB5AVB6 Blue LED Pilot Light 22mm, IP66/IP67, 24V AC/DC, Screw Clamp Terminals

  • MPN: XB5AVB6
  • PPN: SCH-XB5AVB6
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $83.37

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

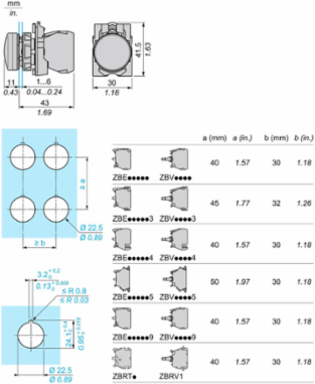

    Spec sheet

    Description

    This Harmony XB5, plain lens modular blue pilot light is supplied with 24V AC/DC, uses a universal LED and screw clamp terminals. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
