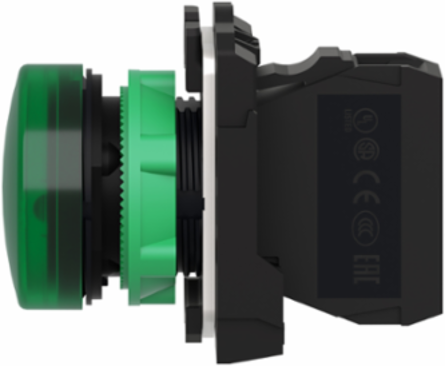

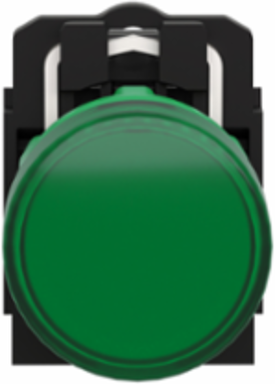

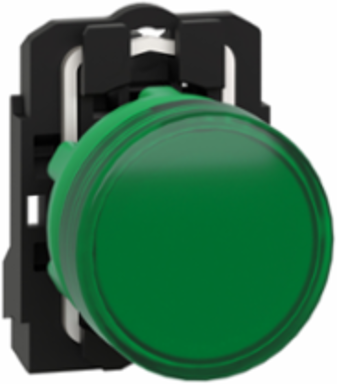

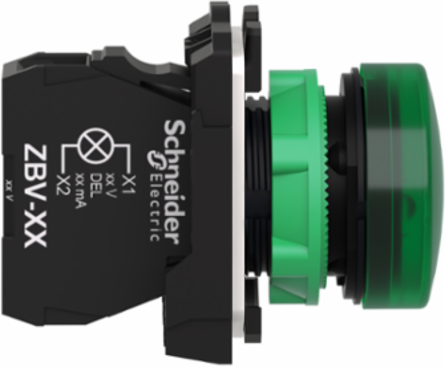

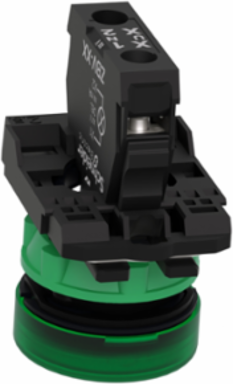

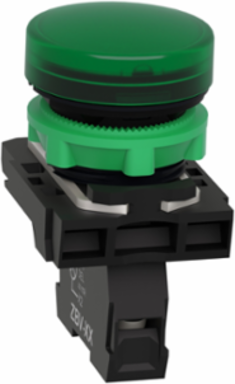

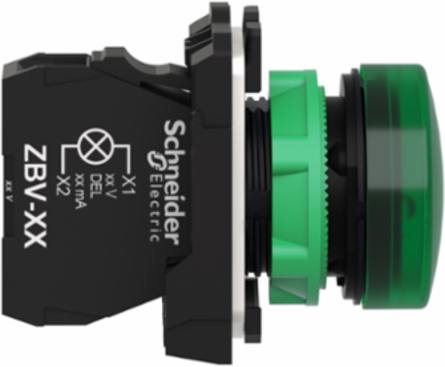

Schneider Electric XB5AVB3 Harmony XB5 Green LED Pilot Light 22mm, IP66, 24V AC/DC
- MPN: XB5AVB3
- PPN: SCH-XB5AVB3
CAD
$83.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony XB5, plain lens modular green pilot light is supplied with 24V AC/DC, uses a universal LED and screw clamp terminals. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Mexico, United States
Depth54 mm
Physical Attributes
- Cap Operator Or Lens Color
- green
Light Source Colorgreen
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- no, 1
- Resistance To Electrostatic Discharge
- 6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
- Supply Voltage Limits
- 19.2-30 V DC, 21.6-26.4 V AC
- Certificate Agency
- CSA, UL Listed
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0047076, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.013989
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 14 kg CO2 eq., 13.666
- Local Publishable Date
- 2026-03-26
- Future Imap
- 35.56
- Stocking Flag
- Y
- Use Carbon Footprint
- 13.666
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Product Repair Index Dam Doc
- XB4BS8442-ENVREPAIR-A-EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Percentage Of Recycled Metal Content
- 7 %
- Bezel Material
- dark grey plastic
- Compatibility Code
- XB5
- Device Short Name
- XB5
- Fixing Collar Material
- plastic
- Head Type
- standard
- Light Source
- universal LED
- Operator Additional Information
- with plain lens
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Repair Index
- A
- Range Of Product
- Harmony XB5
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
- Returnability
- Yes
- Service Life
- 100000 h at rated voltage and 25 °C
- Signalling Type
- steady
- Sustainable Packaging
- Yes
- Vibration Resistance
- 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
- Light Source Color
- green
- Pep Code
- "ENVPEP2308027EN"
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- referent product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Recyclability Potential, In %
- 22
- Width Nominal
- 30 mm
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 60947-1
- Nbr. Of Units In Pkg.
- 1
- Product Repair Index - Dam Document Id
- XB4BS8442-ENVREPAIR-A-EN
- Warranty (In Months)
- 18
- Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
- 13.666
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 289.76
- Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]
- 75.723
- Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]
- -0.7794
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 2.0742
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 289.76
- Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
- 4.3995
- Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]
- 1.3582
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 52.054
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 289.76
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- -0.119
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electromagnetic Compatibilityelectrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2, electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2, electromagnetic emission class B conforming to IEC 55011
Shock Resistance50 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 30 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Cap Operator Or Lens Colorgreen
[Us] Rated Supply Voltage24 V, 24 V AC/DC 50/60 Hz

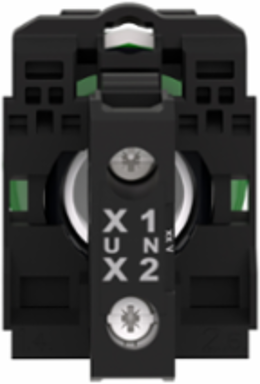

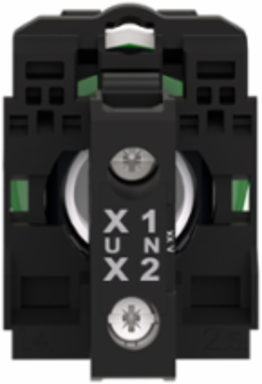

Terminals Description Iso N°1(X1-X2)PL, (X1-X2)PL
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.062453, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.3 kg CO2 eq., 0.27468
Local Data StatusPublishable
Return IndicatorY
Future Msrp46.04
Stock Policy1
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2308027EN
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Average Percentage Of Recycled Plastic Content21 %
Bulb Baseintegral LED
Current Consumption18 mA
Electromagnetic Emissionclass B IEC 55011
Gcr BridgeXB5AVCUST03
Important MessageA change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

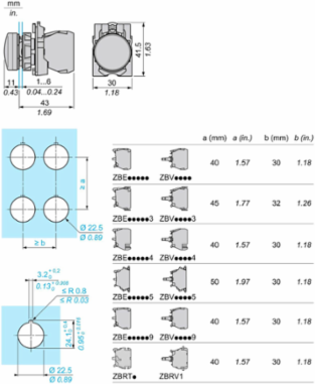

Mounting Diameter22.5 mm
Overvoltage Categoryclass II conforming to IEC 60536
Product Or Component Typepilot light
Protective TreatmentTH
Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity1
Shape Of Signaling Unit Headround
Software Versionv5.9.4
Total Lifecycle Carbon Footprint14 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Supply Voltage Supply Voltage24 V
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionPilot light uses an integral LED and screw clamp terminals. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination.This pushbutton&nbsp;power consumption is 0.432W with 71% active mode for 10 years, and it product&nbsp;complies with IEC 60947-1 standards..
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Height Nominal42 mm
[Ui] Rated Insulation Voltage250 V 3)IEC 60947-1
Cap/Operator Or Lens Colourgreen
Package Weight(Lbs)35.300 g
Take-backNo
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]13.653
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]4.2559
Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]1.3566
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]176.85
Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]11.794
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]4.2559
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]1.3566
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]341.82
Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]-1.0294
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]3.7211
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]1.3566
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]52.054
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 14.0218296
- Environmental Disclosure
- "ENVPEP2308027EN"
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionNEMA 13, NEMA 4X, UL type 4X/13
Recycled Metal Content At Cr Level7 %
Mercury FreeYes
Circularity ProfileENVEOLI2308027EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Pep Code"ENVPEP2308027EN"
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- pilot light
Range Of ProductHarmony XB5
ETIM
- ETIM 8
- EC000272
ETIM 9EC000272
Surge Protection And Filtering Attributes
- Surge Withstand
- 1 kV IEC 61000-4-5
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- complete product
