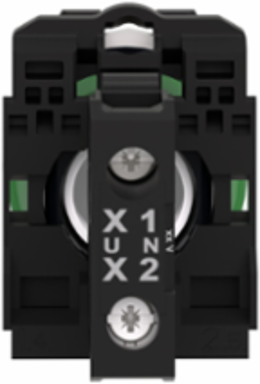

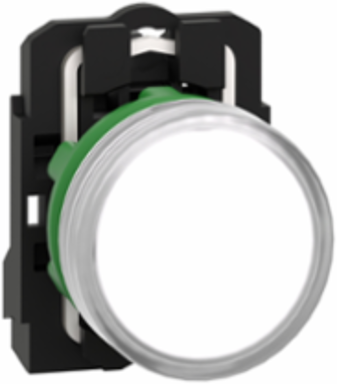

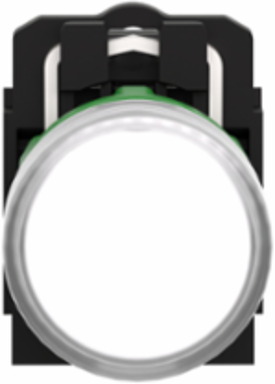

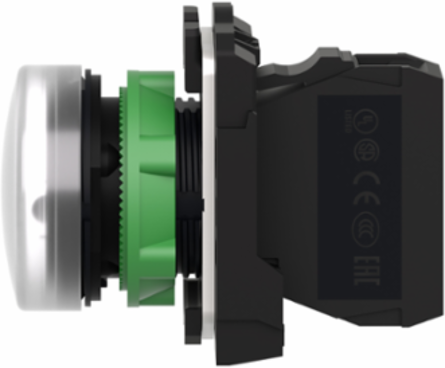

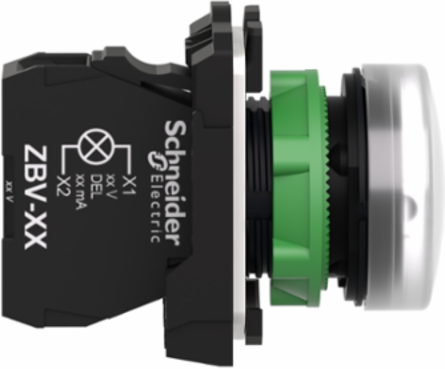

Schneider Electric XB5AVB1 Harmony XB5 22mm Pilot Light, White LED, IP66/IP67/IP69K, 24V AC/DC
Schneider Electric XB5AVB1 Harmony XB5 22mm Pilot Light, White LED, IP66/IP67/IP69K, 24V AC/DC
- MPN: XB5AVB1
- PPN: SCH-XB5AVB1
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$83.37/ EA
Description
This Harmony XB5, plain lens modular white pilot light is supplied with 24V AC/DC, uses an integral LED and screw clamp terminals. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Specifications
Environment
- Product Certifications
- UL listed || CSA
- Ambient Air Temperature For Operation
- -40-70 °C
- Standards
- CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-5-4 || UL 508 || IEC 60947-1 || JIS C8201-5-1 || JIS C8201-1
- Shock Resistance
- 50 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653
- Overvoltage Category
- class II IEC 60536
- Resistance To Electrostatic Discharge
- 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
Ik Degree Of ProtectionIK05 conforming to IEC 50102
Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
Electromagnetic Compatibilityelectrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 || electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 || electromagnetic emission class B conforming to IEC 55011
Vibration Resistance5 gn 12-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Nema Degree Of ProtectionNEMA 13 || NEMA 4X
Protective TreatmentTH
Electromagnetic Emissionclass B IEC 55011
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1710010EN
Important Information
- Important Message
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Complementary
- Height
- 42 mm
- Net Weight
- 0.038 kg
- Current Consumption
- 18 mA
- Connections - Terminals
- screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- Service Life
- 100000 h at rated voltage and 25 °C
- [Ui] Rated Insulation Voltage
- 250 V 3)IEC 60947-1
- Supply Voltage Limits
- 19.2-30 V DC || 21.6-26.4 V AC
- Width
- 30 mm
Terminals Description Iso N°1(X1-X2)PL
[Uimp] Rated Impulse Withstand Voltage4 kV IEC 60947-1
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Gcr BridgeXB5AVCUST03
Surge Withstand1 kV IEC 61000-4-5
Signalling Typesteady
Compatibility CodeXB5
Depth54 mm
Specifications
- Operator Additional Information
- with plain lens
- Light Source
- universal LED
- Product Or Component Type
- pilot light
- Cap/Operator Or Lens Colour
- white
- Head Type
- standard
- Sale Per Indivisible Quantity
- 1
- Light Source Colour
- white
- [Us] Rated Supply Voltage
- 24 V AC/DC 50/60 Hz
Range Of ProductHarmony XB5
Mounting Diameter22 mm
Shape Of Signaling Unit Headround
Fixing Collar Materialplastic
Device Presentationcomplete product
Bezel Materialdark grey plastic
Device Short NameXB5
Bulb Baseintegral LED
