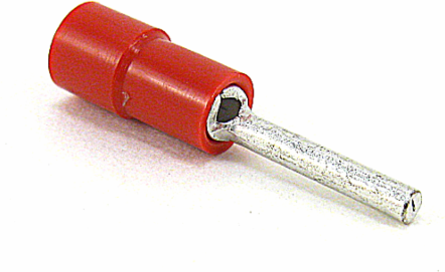

Catamount TV18-12PT-L Insulated Vinyl Pin Terminal 22-16 AWG, Red, 600V
- MPN: TV18-12PT-L
- UPC: 786209937865
- PPN: T-B-TV18-12PT-L
CAD
$0.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

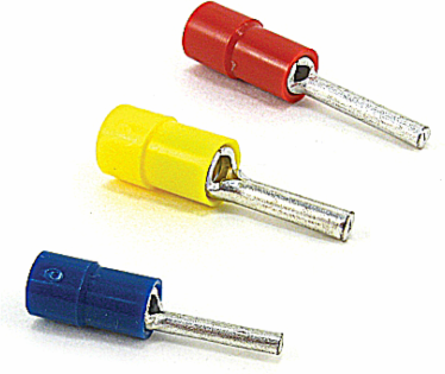

Insulated Vinyl Pin Terminals for Wire Range 22-16 , Red
Features
- For Use in Pin-Style terminal blocks. Molded Funnel Entry Insulator. Brazed Seam. Internal Barrel Serrations.
- Application Tools: WT112M, CM2000A
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121432 Electrical terminals |
|---|---|
| Brand Name | Catamount |
| Special Features | For Use in Pin-Style terminal blocks. Molded Funnel Entry Insulator. Brazed Seam. Internal Barrel Serrations. |
| Wire Size | 22-16 |
| Material | Copper |
| IGCC | 4603 Electrical terminals |
|---|---|
| Type | Pin Terminal |
| Standard | UL E9809 |
| Voltage Rating | 600V |
| Color | Red |
European Specifications (ETIM)
| ETIM | EC001052 Solderless copper terminals for copper conductors |
|---|---|
| Insulation | PVC |
| Reel packaging | N |
| Flange shape | Pin shape |
|---|---|
| Colour insulation | Red |
| AWG-range | 22-16 |
Packaging
| Inner Quantity | 50 |
|---|---|
| Outer Quantity | 500 |
| Weight Uom | 1.88 lbs. per 1000 |
| Inner Dimensions (inches) | 4x7x.01 |
|---|---|
| Outer Dimensions (inches) | 11x8x18 |
