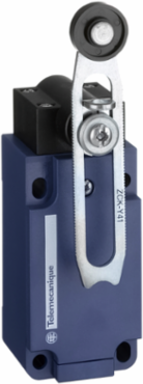

Telemecanique Sensors XCKS141H7 Limit switch, Limit switches XC Standard, XCKS, thermoplastic plast. roller lever var. length, 1NC+1 NO, snap, 1/2NPT
- MPN: XCKS141H7
- PPN: TES-XCKS141H7
CAD
$72.88
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Limit switch, Limit switches XC Standard, XCKS, thermoplastic plast. roller lever var. length, 1NC+1 NO, snap, 1/2NPT
Documentation & Downloads
Specifications
Key Specifications
- Movement Of Operating Head
- rotary
- Fixing Mode
- by the body
- Cable Entry
- 1 entry tapped for 1/2" NPT cable gland 7-13 mm
- Head Material
- plastic
- Head Type
- rotary head
- Series Name
- standard format
- Body Type
- fixed
- Body Material
- plastic
- Number Of Poles
- 2
Range Of ProductTelemecanique Limit switches XC Standard
Type Of Operatorspring return roller lever thermoplastic variable length
Product Or Component Typelimit switch
Materialplastic
Type Of Approachlateral approach, 1 or 2 programmable direction
Contacts Type And Composition1 NC + 1 NO
Contact Operationsnap action
Device Short NameXCKS
Complementary
- Height
- 117-172 mm
- Short-Circuit Protection
- 10 A cartridge fuse gG
- Electrical Connection
- screw-clamp terminals 1 x 0.34...2 x 1.5 mm²
- Net Weight
- 0.165 kg
- Switch Actuation
- by 30° cam
- Electrical Durability
- 5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Contacts Insulation Form
- Zb
- Maximum Actuation Speed
- 1.5 m/s
- Width
- 40 mm
- Minimum Torque For Tripping
- 0.1 N.m
- Maximum Resistance Across Terminals
- 25 MOhm IEC 60255-7 category 3
Terminals Description Iso N°1(13-14)NO || (21-22)NC
Minimum Actuation Speed0.01 m/min
Number Of Steps1
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60664 || 6 kV IEC 60947-1
[Ui] Rated Insulation Voltage300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
Positive Openingwith
Mechanical Durability20000000 cycles
Contact Code DesignationA300, AC-15 (Ue = 240 V), Ie = 3 A EN/IEC 60947-5-1 appendix A || Q300, DC-13 (Ue = 250 V), Ie = 0.27 A EN/IEC 60947-5-1 appendix A
Depth57 mm
[Ithe] Conventional Enclosed Thermal Current10 A AC
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1307066
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI1307066EN
Environment
- Product Certifications
- CSA || CCC || UL
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 40 gn 11 ms IEC 60068-2-27
- Ip Degree Of Protection
- IP67 IEC 60529 || IP66 IEC 60529
- Overvoltage Category
- class II IEC 61140 || class II NF C 20-030
- Protective Treatment
- TC
Ik Degree Of ProtectionIK05 EN 50102
StandardsUL 508 || EN 60204-1 || CSA C22.2 No 14 || CENELEC EN 50041 || IEC 60947-5-1 || IEC 60204-1 || EN 60947-5-1
Vibration Resistance25 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Electrical Shock Protection Classclass II IEC 61140 || class II NF C 20-030
