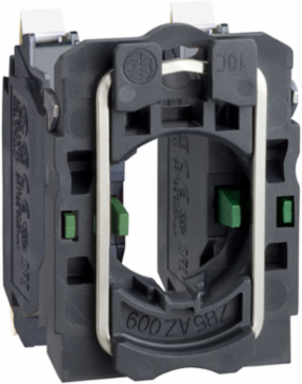

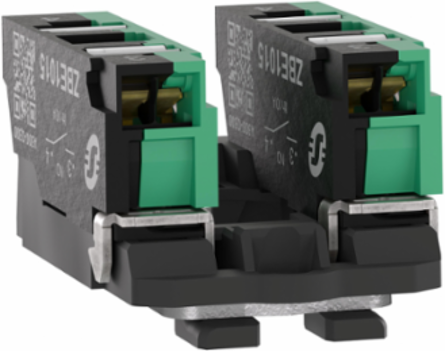

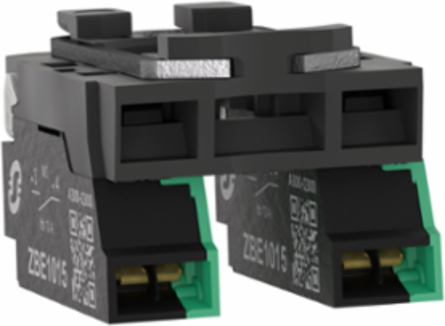

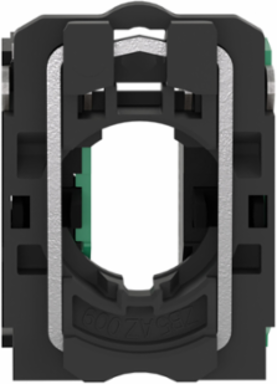

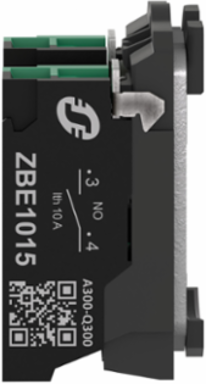

Schneider Electric ZB5AZ1035 Harmony XB5 Complete Body Contact Assembly, 30 mm Width, 2 NO Contacts

MPN: ZB5AZ1035
PPN: SCH-ZB5AZ1035

$45.78

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Crafted by Schneider Electric, this Harmony XB5 complete body contact assembly is designed to provide reliable performance in automated and control applications. Featuring a compact 30 mm width and equipped with two normally open (NO) contacts, it is ideal for various pilot device setups. This assembly ensures seamless integration into your existing systems, delivering both efficiency and durability, making it a practical choice for professionals looking to enhance their automation solutions.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, United States

Physical Attributes

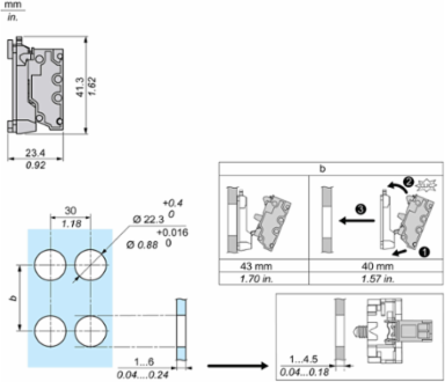

Cad Overall Depth	30 mm
Cad Overall Width	46.2 mm

Cad Overall Height	27.6 mm

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Contact Operation	slow-break, slow-break
Device Composition	fixing collar, body
Contacts Composition	2 NO

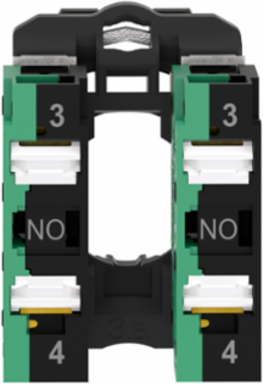

Terminals Description Iso N°1	(13-14)NO, (13-14)NO
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0 kg CO2 eq., 0.038373942860167966
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.2 kg CO2 eq., 0.15735194721341966
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Percentage Of Recycled Plastic Content	24 %
Contact Block Type	single
Contacts Type And Composition	2 NO
Device Short Name	ZB5
Head Type	standard
Operating Force	4.9 N NO changing electrical state
Positive Opening	without
Product Or Component Type	complete body/contact assembly
Range Of Product	Harmony XB5
Sale Per Indivisible Quantity	1
Sustainable Packaging	Yes
Vibration Resistance	5 gn (f= 10-500 Hz) conforming to IEC 60068-2-625 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
Connections Terminals 8 Connections Terminals	push-in
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	XB5 Modular green push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations.A push button switch's primary purpose is to turn something on or off in industrial applications. This pushbutton power consumption is 0.002W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; APAC
[Ie] Rated Operational Current	6 A 120 V, AC-15, A300 IEC 60947-5-13 A 240 V, AC-15, A300 IEC 60947-5-10.55 A 125 V, DC-13, Q300 IEC 60947-5-10.27 A 250 V, DC-13, Q300 IEC 60947-5-1
[Ui] Rated Insulation Voltage	300 V 3)IEC 60947-1

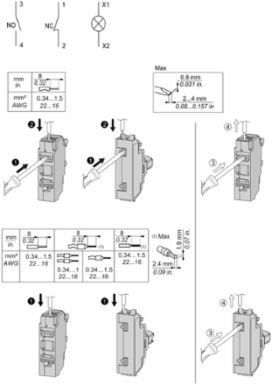

Connections - Terminals	push-in, = 1 x 0.34 mm² without wire end ferrule IEC 60947-1
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8538908180

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Customizable	0, no
Shock Resistance	25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Certificate Agency	EAC, IECEE CB Scheme, CCC, UL, CSA
Carbon Footprint Of The Distribution Phase [A4]	0.007413259083391998, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.005597534426882791, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	0 kg CO2 eq., 0.03592690140845071
Local Publishable Date	2026-03-26
Stocking Flag	N
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2303008EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Percentage Of Recycled Metal Content	12 %
Compatibility Code	ZB5
Contacts Material	silver alloy (Ag/Ni)
Contacts Usage	standard contacts
Fixing Collar Material	plastic
Mechanical Durability	10000000 cycles
Operating Travel	2.05 mm NO changing electrical state)4.3 mm total travel)
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TH
Returnability	Yes
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	0.2 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep Code	ENVPEP2303008EN
Pep Verification Date	2024-03-24
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; APAC
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; APAC
[Ith] Conventional Free Air Thermal Current	10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage	4 kV IEC 60947-1
Short-circuit Protection	10 A cartridge fuse gG IEC 60947-5-1
Package Weight(Lbs)	21.000 g
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Operation	-40-70 °C, -40-70 °C
Take Back	No
Recycled Metal Content At Cr Level	12 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.2446635849923131
Environmental Disclosure	ENVPEP2303008EN
Ip Degree Of Protection	IP20 IEC 60529
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2024-03-24
Psr Version	PSR-0005-ed2-2016 03 29

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI2303008EN
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2303008EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
