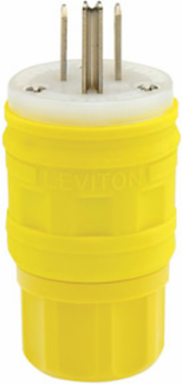

Leviton 14W47 Wetguard Watertight Straight Blade Plug 15 Amp 125 Volt NEMA 5-15P IP69K Rated
- MPN: 14W47
- UPC: 078477848296
- PPN: LEV-14W47
CAD
$25.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

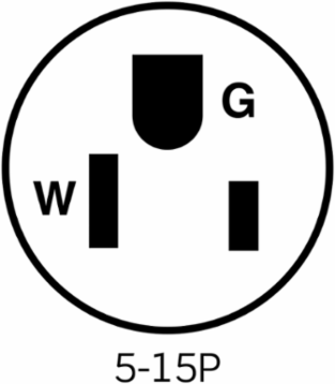

15 Amp, 125 Volt, NEMA 5-15P, 2P, 3W, Plug, Straight Blade, Industrial Grade, Grounding, Wetguard - YELLOW
Features
- BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents
- WATERTIGHT- When mated or caps are on, feature IP69K ratings for high-temperature, high-pressure washdowns
- UNIQUE DESIGN- Exclusive “tongue and groove” design provides superior ingress protection from water, dirt and debris
- HIGH PERFORMANCE- Heavy-duty, one-piece contacts for maximum conductivity electrical performance
- THE BRAND YOU TRUST- Backed by a lifetime warranty
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- Torque Range
- 12-14 in-lbs
- Pole
- 2
- IP Rating
- IP66, IP67, IP69K
- Cord Range
- 0.375 to 0.655 in
- Material
- EPTR Rubber, Nickel-Plated Brass, Stainless Steel 300, Nylon, Santoprene TPV
- Flammability Rating
- V-2 per UL 94
- ANSI
- C-73
- NOM
- 057
- NEMA
- WD-6
- Terminal Screws
- Electroless Nickel-coated Brass
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Assembly Screws
- Stainless Steel 300
- Wire Module
- Nylon
- Temperature Rise
- Max 30°C after 250 cycles OL at 200% rated current
- Environment
- Wet
Voltage125 VAC
Dielectric Voltage2000 V per UL498
Wire3
Operating Temperature-40°C to 60°C
Cord Grip Range0.234 to 0.687 in
GroundingYes
CSA C22.2 No. 42File LR-406
UL498
RoHS CompliantTrue
Device TypeStraight Blade Plug
Terminal Accom.18-10 AWG
Compression Nut, Strain ReliefNylon
BushingSantoprene TPV
Current LimitingFull Rated Current
BrandWetguard
Country of OriginMexico
