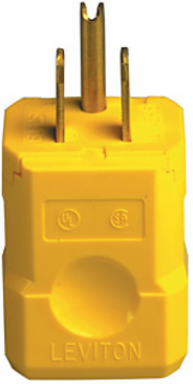

Leviton 5256-VY 15 Amp 125 Volt Industrial Grade Straight Blade Plug, Yellow, NEMA 5-15P
- MPN: 5256-VY
- UPC: 078477056011
- PPN: LEV-5256-VY
CAD
$6.73
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
15 Amp, 125 Volt, NEMA 5-15P, 2P, 3W, Plug, Straight Blade, Industrial Grade, Grounding, Python - Yellow
Features
- Leviton’s Industrial Grade Straight Blade Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Straight Blade Devices of unmatched flexibility and dependability.
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- Poles
- 2
- Grounding
- Grounding
- Cord Range
- .245 - .700 in
- Dielectric Voltage Withstand
- 2000 V
- Body Material
- Super Tough Nylon
- Clamp Insert Material
- Nylon
- Back Cover Material
- Thermoplastic
- Terminal Accommodation
- 18-10 AWG
- Flammability Rating
- UL 94 V-2
- Temperature Rise
- Max 30°C after 250 cycles OL at 200% rated current
- Color
- Yellow
- Brand
- Python
Voltage125 VAC
Wires3
Torque Range12-14 in-lbs
Operating Temperature-40°C to 60°C
Current InterruptingCertified for full rated current
Blades/Contacts MaterialSolid Brass
Assembly Screws MaterialSteel, Zinc Plated
Terminal Screws MaterialBrass
Terminal IdentificationBrass-Hot, Green-Ground, Silver-Neutral
StandardsANSI C-73, CSA C22.2 No. 42, NEMA WD-6, UL 498, NOM 057
EnvironmentDry
Country of OriginMexico
Device TypeStraight Blade Plug
