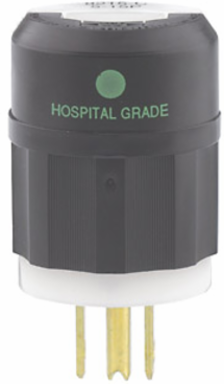

Leviton 8215-C Hospital Grade 15 Amp 125 Volt Straight Blade Plug, NEMA 5-15P

MPN: 8215-C
UPC: 078477795262
PPN: LEV-8215-C

$25.66

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

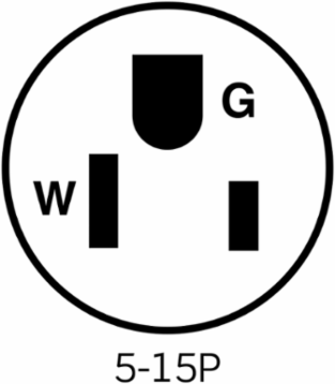

15 Amp, 125 Volt, NEMA 5-15P, 2P, 3W, Plug, Straight Blade, Hospital Grade, Grounding, - BLACK-WHITE

Features

Captive, quick drive assembly screws for faster assembly
Rugged nylon construction resists impact, heat, chemicals, and rough use
Ratings and NEMA I.D. permanently marked on device
Industry exclusive limited lifetime warranty

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

RoHS Compliant	True

Standards and Certifications

ANSI	C-73
NEMA	WD-6
UL 498	File E13399
Warranty	Limited Lifetime Warranty Warranty

CSA C22.2 No. 42	File LR-406
NOM	057
UL Fed Spec WC-596	File E13393

Material Specifications

Assembly Screws	Steel, Zinc Plated
Blades/Contacts	Solid Brass
Clamp Insert	Nylon
Cord-Clamp	Nylon
Wire Module	Nylon

Back Cover	Thermoplastic
Body Material	Impact Modified Nylon
Color	Black-White
Terminal Screws	Brass

Mechanical Specifications

Amperage	15 A
Current Interrupting	Certified for current interrupting at full rated current
Grounding	Grounding
Product ID	Ratings and NEMA I.D. permanently marked on device
Terminal Accom.	18-10 AWG
Torque Range	10-14 in-lbs
Wire	3

Cord Range	0.230 to 0.685
Dielectric Voltage	Withstands 2000V per UL498
Pole	2
Temperature Rise	Max 30C after 250 cycles OL at 200 percent rated current
Terminal ID	Brass-Hot, Green-Ground, White-Neutral
Voltage	125 VAC
