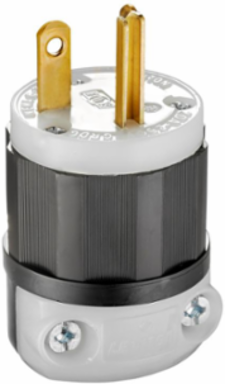

Leviton 5466-C Industrial Grade Straight Blade Plug 20 Amp 250 Volt NEMA 6-20P Black/White
- MPN: 5466-C
- UPC: 078477796009
- PPN: LEV-5466-C
CAD
$46.02
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

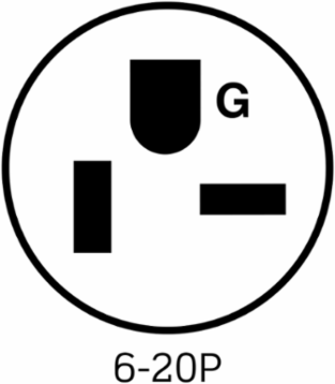

20 Amp, 250 Volt, NEMA 6-20P, 2P, 3W, Plug, Straight Blade, Industrial Grade, Grounding, - Black/White
Features
- Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a lifetime warranty:
- Captive, quick drive assembly screws for faster assembly
- Unique cord clamp accepts wide range of cord sizes (.245"-.700")
- Rugged nylon construction resists impact, heat, chemicals, and rough use
- Industry exclusive lifetime warranty
- Ideal for motors such as unisaws, table saws, portable dust collectors, air compressors and generators
Documentation & Downloads
Specifications
Additional
| Amperage | 20 A |
|---|---|
| Current Interrupting | Certified for current interrupting at full rated current |
| Torque Range | 10-14 in-lbs |
| Operating Temperature | -40b0C to 60b0C |
| Pole | 2 |
| Cord Range | 0.230 to 0.685 in |
| Material | Impact Modified Nylon, Solid Brass, Steel Zinc Plated, Thermoplastic, Nylon |
| Body Material | Impact Modified Nylon |
| Assembly Screws | Steel, Zinc Plated |
| Clamp Insert | Nylon |
| Wire Module | Nylon |
| Terminal Accom. | 18-10 AWG |
| ANSI | C-73 |
| NOM | 057 |
| UL Fed Spec WC-596 | File E13393 |
| Environment | Dry |
| Country of Origin | Mexico |
| Voltage | 250 VAC |
|---|---|
| Dielectric Voltage | Withstands 2000 V per UL498 |
| Temperature Rise | Max 30C after 250 cycles OL at 200% rated current |
| NEMA | WD-6 |
| Wires | 3 |
| Device Type | Straight Blade Plug |
| Back Cover | Thermoplastic |
| Blades/Contacts | Solid Brass |
| Terminal Screws | Brass |
| Cord-Clamp | Nylon |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Grounding | Yes |
| CSA C22.2 No. 42 | File LR-406 |
| UL 498 | File E13399 |
| Flammability | Rated HB or better UL94 |
| Color | Black-White |
| Brand | Black and White |
