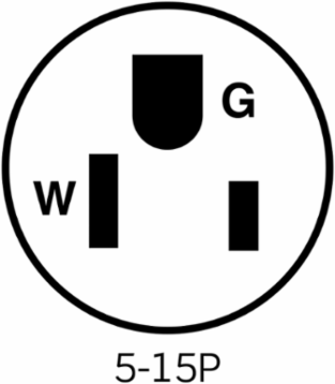

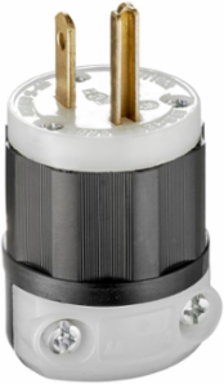

Leviton 5266-C Industrial Grade Straight Blade Plug, 15 Amp, 125 Volt, NEMA 5-15P, Black & White
- MPN: 5266-C
- UPC: 078477795200
- PPN: LEV-5266-C
CAD
$12.82
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
15 Amp, 125 Volt, NEMA 5-15P, 2P, 3W, Plug, Straight Blade, Industrial Grade, Grounding, - Black/White
Features
- Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a lifetime warranty:
- One piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes (.230”-.685")
- Rugged nylon construction resists impact, heat, chemicals, and rough use
- Industry exclusive lifetime warranty
- Ideal for generators, air conditioners, drills, circular saws and air compressors
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- Current Interrupting
- Certified for current interrupting at full rated current
- Wire
- 3
- Torque Range
- 10-14 in-lbs
- Clamp Insert
- Nylon
- Back Cover
- Thermoplastic
- Terminal Screws
- Brass
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Grounding
- Grounding
- Country of Origin
- Mexico
- Flammability
- Rated HB or better UL94
- NEMA
- WD-6
- UL 498
- File E13399
- NOM
- 057
- Warranty
- Limited Lifetime Warranty
Voltage125 VAC
Pole2
Cord Range0.230 to 0.685 in
Operating Temperature-40b0C to 60b0C
Body MaterialImpact Modified Nylon
Assembly ScrewsSteel, Zinc Plated
Blades/ContactsSolid Brass
Terminal Accom.18-10 AWG
ColorBlack-White
EnvironmentDry
Dielectric Voltage2000 V
CSA C22.2 No. 42File LR-406
ANSIC-73
UL Fed Spec WC-596File E13393
