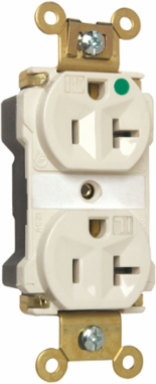

Pass & Seymour PT8300ILGRY PlugTail® 20A 125V Hospital-Grade Duplex Receptacle, Gray, 1.625 Inch Width
Pass & Seymour PT8300ILGRY PlugTail® 20A 125V Hospital-Grade Duplex Receptacle, Gray, 1.625 Inch Width
- MPN: PT8300ILGRY
- UPC: 785007238617
- PPN: P-S-PT8300ILGRY
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$43.52/ EA
Description
PlugTail® Extra Heavy-Duty Hospital Grade Illuminated Receptacles, 20A, 125V PlugTail® devices and connectors mean that device installation is the same regardless of skill level of the installer. The UL-Listed connectors are keyed to ensure proper wiring installation into each receptacle.
Features
- Molded-in ''IL'' markings on face of product.
- Efficient, 15.5W power supply for fast charging of mobile phones and tablets
- Exclusive patented feature, circuit label on face allows permanent circuit identification.
- .036 inch thick, brass, triple-wipe power contacts for lasting retention.
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.
- No exposed terminals create a finger safe application before, during, and after installation.
- Crimped and welded contacts.
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
- Large brass contacts snugly terminate on device blade terminals.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
- PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6"" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
Specifications
Specifications
- Depth
- 0.856 in
- Height
- 2.75 in
- Amperage
- 20.0 A
- Standard
- UL 498
- Standard
- FEDSPEC
- Number of Wires
- 3.0
- Wire Size
- 14 - 10 AWG
- Number of Receptacles
- 2.0
- Number of Poles
- Double Pole
- Application Sector
- Healthcare
- NEMA Configuration Code
- 5-20R
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Min
- -40.0 °C
- Color
- Gray
- Special Features
- Plated steel wrap, no exposed terminals, built in connector, crimped & welded contacts
PhaseThree
Width1.625 in
Country of OriginMexico
Voltage125.0 V
FeaturesNightlight
Indoor/OutdoorIndoor
Wall Plate IncludedNo
Outlet TypeHospital Grade
Application SectorCommercial
Connection LocationBack Only
Wire Connection TypePlugTail
Operating Temperature Max60.0 °C
Operating Temperature-40°-60°C
Product LinePass & Seymour
