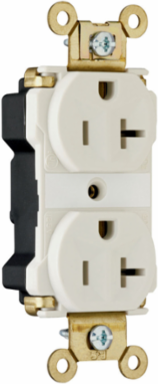

Pass & Seymour PT5362ALA PlugTail 20A 125V Industrial Heavy Duty Duplex Receptacle 0.86 Inch Depth
- MPN: PT5362ALA
- UPC: 785007860344
- PPN: P-S-PT5362ALA
- UNSPSC: 39121406
CAD
$42.95
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
PlugTail® Industrial Extra Heavy-Duty Spec Grade Receptacles, 20A, 125V PlugTail® devices and connectors mean that device installation is the same regardless of skill level of the installer. The UL-Listed connectors are keyed to ensure proper wiring installation into each receptacle.
Features
- .036 inch thick, brass, triple-wipe power contacts for lasting retention.
- Illuminated face indicates power to receptacle and makes it easy to identify receptacle in dark applications.
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
- Crimped and welded contacts.
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
- Large brass contacts snugly terminate on device blade terminals.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
- PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Height | 2.75 in |
| Color | Light Almond |
| Amperage | 20.0 A |
| Indoor/Outdoor | Indoor |
| Phase | Three |
| Application Sector | Industrial; Commercial |
| Standard | UL 498; FEDSPEC |
| Operating Temperature Min | -40.0 °C |
| Wall Plate Included | No |
| NEMA Configuration Code | 5-20R |
| Operating Temperature | -40°-60°C |
| Connection Location | Back Only |
| Operating Temperature Max | 60.0 °C |
| Depth | 0.86 in |
|---|---|
| Width | 1.625 in |
| Product Line | Pass & Seymour |
| Number of Poles | Double Pole |
| Number of Receptacles | 2.0 |
| Special Features | Plated steel wrap, no exposed terminals, built in connector, crimped & welded contacts |
| Number of Wires | 3.0 |
| Wire Size | 14 - 10 AWG |
| Warranty Type | 1-Year Limited Warranty |
| Outlet Type | Straight Blade |
| Wire Connection Type | PlugTail |
| Voltage | 125.0 V |
| Features | Single Piece Plated Steel Mounting Strap |
