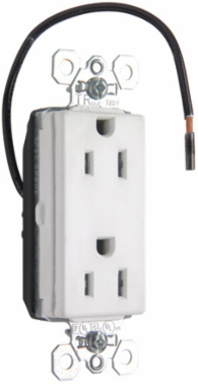

Pass & Seymour PTTR26262SCW PlugTail® 15A 125V Tamper-Resistant Duplex Receptacle, White, 1.5 Inch Width, 2.75 Inch Height
- MPN: PTTR26262SCW
- UPC: 785007001785
- PPN: P-S-PTTR26262SCW
CAD
$33.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
PlugTail® Split Circuit Tamper-Resistant Decorator Spec Grade Receptacle, 15A, 125VPlugTail® devices and connectors mean that device installation is the same regardless of skill level of the installer. The UL-Listed connectors are keyed to ensure proper wiring installation into each receptacle.
Features
- .036 inch thick, brass, triple-wipe power contacts for lasting retention.
- No exposed terminals create a finger safe application before, during, and after installation.
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
- Crimped and welded contacts.
- Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
- Pre-wired with one welded pre-stripped wire lead to facilitate switched receptacle circuit applications.
- Auto-ground clip assures positive ground.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.875 in
- Amperage
- 15.0 A
- Standard
- UL 498
- Voltage
- 125.0 V
- Wire Size
- 12 AWG
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Features
- Decorator Style
- Outlet Type
- Straight Blade
- Outlet Type
- Tamper-Resistant
- Connection Location
- Back Only
- Wire Connection Type
- PlugTail
- Operating Temperature Max
- 60.0 °C
- Operating Temperature
- -40°-60°C
- Finish
- Matte
Height2.75 in
Width1.5 in
Country of OriginMexico
StandardFEDSPEC
Number of Wires4.0
FeaturesSplit Circuit
Is Tamper-ResistantYes
Number of Receptacles2.0
Number of PolesDouble Pole
Application SectorCommercial
NEMA Configuration Code5-15R
Warranty Type1-Year Limited Warranty
Operating Temperature Min-40.0 °C
ColorWhite
Product LinePass & Seymour
