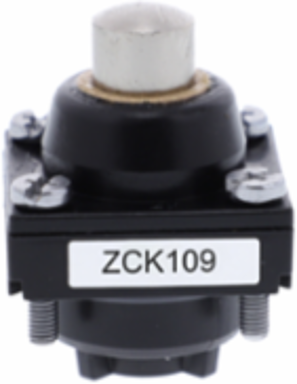

Telemecanique Sensors ZCKD109 Limit switch head, Limit switches XC Standard, ZCKD, metal end plunger with boot
- MPN: ZCKD109
- PPN: TES-ZCKD109
- UNSPSC: 39122213
CAD
$24.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This product is part of the XC Standard range, an offer of limit switches. This limit switch head provides switch actuation on end with positive opening operation. The metal spring return end plunger (with protective boot) and supports vertical approach in 1 direction. The movement of limit switch operating head is linear. The limit switch linear head is made of plastic. It is intended for all industrial machine applications such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc. It is compatible with XCKM and XCKL limit switches, and various ZC bodies. Limit switches for contact sensing of inflexible objects. High quality of products and worldwide availability guarantee in a short delivery time. A comprehensive offer of contacts for a simpler and safer machine design. Ex OsiSwitch, IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM miniature and classic limit switches ranges.
Documentation & Downloads
Specifications
Key Specifications
- Type Of Approach
- vertical approach, 1 direction
- Movement Of Operating Head
- linear
- Type Of Operator
- end plunger spring return metal with protective boot)
- Associated Body
- ZCKL8 || ZCKMD39 || ZCKM6H29 || ZCKMD39H7 || ZCKL7 || ZCKL5H7 || ZCKM8H29 || ZCKLD31H7 || ZCKM8 || ZCKM9H29 || ZCKM1H7 || ZCKMD39H29 || ZCKM7 || ZCKMD31 || ZCKL1H7 || ZCKLD31 || ZCKM1 || ZCKLD39H7 || ZCKM5 || ZCKM7H29 || ZCKL1 || ZCKLD39 || ZCKL6 || ZCKMD35 || ZCKLD37H7 || ZCKM5H29 || ZCKM5H7 || ZCKMD35H7 || ZCKLD35H7 || ZCKMD37 || ZCKL5 || ZCKMD31H7 || ZCKM7H7 || ZCKMD35H29 || ZCKLD35 || ZCKMD37H29 || ZCKMD31H29 || ZCKL8H7 || ZCKM8H7 || ZCKM9 || ZCKM6 || ZCKL7H7 || ZCKLD37 || ZCKMD37H7 || ZCKL6H7 || ZCKM6H7 || ZCKM1H29
- Device Short Name
- ZCKD
Series Namestandard format
Range Of ProductTelemecanique Limit switches XC Standard
Product Or Component Typelimit switch head
Product CompatibilityXCKM || XCKL
Head Typeplunger head
Complementary
- Switch Actuation
- on end
- Head Material
- plastic
Positive Openingwith
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Environmental Characteristic
- standard environment
Ambient Air Temperature For Storage-40-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Environmental Disclosure
- ENVPEP110614EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
