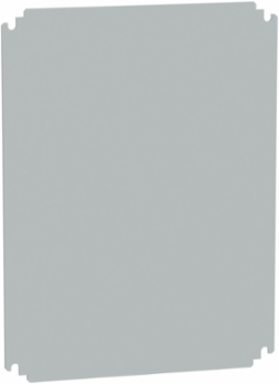

Schneider Electric NSYMPP54 Insulating Mounting Plate 465mm x 350mm, Fiberglass Reinforced Polyester, 50kg Load
- MPN: NSYMPP54
- PPN: SCH-NSYMPP54
CAD
$111.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Designed for versatility and durability, this insulating mounting plate is crafted from fibreglass reinforced polyester, ensuring a robust solution for various applications. With dimensions of 465 mm in height and 350 mm in width, it is engineered to fit seamlessly within enclosures of nominal sizes 500 mm by 400 mm. The mounting plate features a plain design and is intended for direct fixing on backstuds, offering a reliable installation method. Weighing just 1.2 kg, it can support a permanent permissible load of up to 50 kg, making it an excellent choice for a range of mounting needs. This product not only meets high standards of performance but also reflects Schneider Electric's commitment to quality with an 18-month warranty.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Spain, France
- Width
- 15.75 in
Height19.69 in
Physical Attributes
- Color
- Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- -, -
- Mounting Location
- direct fixing on backstuds, step slide
- Local Publishable Date
- 2026-04-13
- Stocking Flag
- N
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1922
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Application
- multi-purpose
- Material
- fibreglass reinforced polyester
- Permanent Permissible Load
- 50 kg
- Product Or Component Type
- mounting plate
- Range
- PanelSeT
- Sustainable Packaging
- No
- Pep Code
- ENVPEP1001004EN
- Height Useful
- enclosure nominal dimension: 500 mm
- Width Real
- enclosure nominal dimension: 400 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 3926909989
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Fixing Modescrewed on backstuds M8, by fixing element
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Mounting Plate Descriptionplain
Product AvailabilityStock - Normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityYes
Thickness4 mm
Height Nominalnominal: 465 mm
Width Nominalnominal: 350 mm
Accessory / Separate Part Categorymounting accessory
Package Weight(Lbs)1.182 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1001004EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1001004EN
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- mounting plate
ETIM
- ETIM 8
- EC000213
ETIM 9EC000213
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
