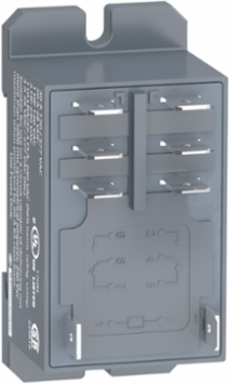

Schneider Electric RPF2BJD Harmony Power Relay 30A 12V DC 2CO DIN Rail/Panel Mount
- MPN: RPF2BJD
- PPN: SCH-RPF2BJD
CAD
$25.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony RPF panel mounting power relay with fast-on terminals has a coil control voltage of 12V DC and has 2 normally open contacts with a rating of 30A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). 0 0 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France
Physical Attributes
- Cad Overall Depth
- 39.2 mm
- Cad Overall Width
- 33.7 mm
Cad Overall Height68.5 mm
Complementary Attributes
- Control Circuit Type
- DC
- Line Rated Current
- 30 A
- Maximum Switching Voltage
- 250 V IEC
- Minimum Switching Current
- 500 mA
Control Circuit Voltage Limits9.6...13.2 V
Maximum Switching Capacity7500 VA/700 W
Minimum Switching Capacity6000 mW 500 mA / 12 V NO170 mW 10 mA / 6 V NC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 2000 V AC between poles with basic, 4000 V AC between coil and contact with reinforced, 1500 V AC between contacts with micro disconnection
- Mounting Support
- DIN rail, panel
- Contacts Composition
- 2 C/O
- Certificate Agency
- CE, CSA, GOST, UL
- [Uc] Control Circuit Voltage
- DC, 12 V
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.19276592592668515, 0.2 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.7 kg CO2 eq., 0.7218339383902235
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Consumption
- 1.7 W
- Compatibility Code
- RPF
- Contacts Type And Composition
- 2 C/O
- Electrical Durability
- 100000 cycles resistive
- Operating Position
- any position
- Product Availability
- Stock - Normally stocked in distribution facility
- Protection Category
- RT II
- Relay Type
- power relay
- Returnability
- Yes
- Series Name
- RPF series
- Shock Resistance
- 10 gnin operation30 gnnot operating
- Status Led
- without
- Test Levels
- level A group mounting
- Utilisation Coefficient
- 10 %
- Control Circuit Type2
- DC
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits or where several circuits must be controlled by one signal majorly in industrial applications. Product has lifetime of 10 years with a 30% use rate and product is adhering to international standards IEC 61810-1.not applicable
- Functional-unit Unit
- Unit
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- [Ithe] Conventional Enclosed Thermal Current
- 25 A -40-55 °C relays side by side without a gap30 A -40-55 °C 13 mm gap between two relays
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV 1.2/50 µs
- Drop-out Voltage Threshold
- >= 0.1 Uc>= 0.1 Uc
- Package Weight(Lbs)
- 83.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Load Current25 A 28 V DC, 30 A 250 V AC
Operating Rate<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
Control Circuit Voltage12 V
[Ie] Rated Operational Current3 A 28 V DC) NC UL, 3 A 250 V AC) NC IEC, 3 A 28 V DC) NC IEC30 A 277 V AC) NO UL, 20 A 28 V DC) NO UL30 A 250 V AC) NO IEC, 25 A 28 V DC) NO IEC3 A 277 V AC) NC UL
Carbon Footprint Of The Distribution Phase [A4]0.10234893337882772, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.00028109275066189943
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]27 kg CO2 eq., 26.551167340930224
Local Publishable Date2026-03-26
Stocking FlagN
Weee ScopeOut
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Average Resistance86 Ohm at 20 °C +/- 10 %
Contacts Materialsilver tin oxide
Control Typewithout lockable test button
Mechanical Durability5000000 cycles
Operating Time25 ms
Product Or Component TypeDIN rail/panel mount relay
Range Of ProductHarmony Electromechanical Relays
Reset Time25 ms
Safety Reliability DataB10d = 100000
Shape Of Pinflat (faston type)
Software Versionv6.1
Sustainable PackagingYes
Total Lifecycle Carbon Footprint28 kg CO2 eq.
Vibration Resistance3 gn +/- 1 mm 10-150 Hz)5 cycles in operation10 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Pep CodeENVPEP2502021EN
Pep Verification Date2025-02-23
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Energy Model - Manufacturing [A1-a3]China, CN
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential In %1
[Ui] Rated Insulation Voltage250 V IEC300 V UL
Connections - Terminalsquick-connect terminal
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536410050
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Ambient Air Temperature For Operation
- -40-55 °C-40-55 °C
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2502021EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint27.568397231376622
Environmental DisclosureENVPEP2502021EN
Ip Degree Of ProtectionIP40 conforming to IEC 60529
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-02-23
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- DIN rail/panel mount relay
Range Of ProductHarmony Electromechanical Relays
ETIM
- ETIM 8
- EC001437
ETIM 9EC001437
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- complete product
