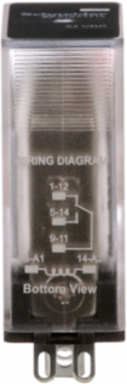

Schneider Electric 781XAXRC-24D Power relay, SE Relays, 15A, SPDT, 24 VDC, clear cover
- MPN: 781XAXRC-24D
- PPN: SCH-781XAXRC-24D
CAD
$13.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The SE Relays 781R series, plug-in general purpose relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover. Contacts rated as 10A resistive at 277VAC, motor 1/3hp at 120VAC, 1hp at 277VAC with nominal coil voltage 24VDC , makes relay to be an ideal choice for automation panels and controls. Gold flashed contact SPDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option, blade terminal style simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Slim design of 14 mm width saves valuable space. Mechanical standard flag indicator displays the relay status during testing or operation.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, United States
Depth27.3 mm
Complementary Attributes
- Maximum Switching Voltage
- 300 V AC UL, 300 V AC CSA250 V AC IEC
- Minimum Switching Current
- 10 mA 17 V
Maximum Horse Power Rating0.5 hp 120 V AC 50-60 Hz1 hp 277 V AC 50-60 Hz
Important Information Attributes
- Dielectric Strength
- 2000 V AC between coil and contact, 2000 V AC between poles1500 V AC between contacts
- Vibration Resistance
- +/-1 mm 10-35 Hz), +/-1 mm 10-35 Hz)+/-1 mm 10-35 Hz), +/-1 mm 10-35 Hz)3 gn 35-150 Hz)
- [Ie] Rated Operational Current
- 15 A at 28 V DC conforming to CSA15 A at 28 V DC (NO) conforming to IEC7.55 A at 28 V DC (NC) conforming to IEC, 15 A at 120...277 V AC conforming to UL15 A at 28 V DC conforming to UL15 A at 120/150 V AC conforming to CSA10 A at 151/277 V AC conforming to CSA, 15 A at 250 V AC (NO) conforming to IEC7.55 A at 250 V AC (NC) conforming to IEC
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Contacts Material
- silver alloy, gold flashed
- Electrical Durability
- 100000 cycles resistive
- Mechanical Durability
- 10000000 cycles
- Power Consumption In Va
- 1.6-1.6 VA AC
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Legacy
- Shock Resistance
- 15 gn in operation
- Switch Function
- SPDT
- Pep Code
- ENVPEP2403024EN
- Width Nominal
- 14 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536410050
Operating Time25 ms, 20 ms
Certificate AgencyUL, CE, CSA
Drop-out Voltage Threshold>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeOut
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2403024EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Kit IdentifierN
Contacts Type And Composition1 NC + 1 NO
Local Signallingflag
Mounting Supportsocket
Power Consumption In W1.1-1.1 W DC
Product Or Component Typepower relay
ReturnabilityYes
Sustainable PackagingYes
Voltage Range0.8...1.1 Un AC/DC
Height Nominal35.3 mm
Connections - TerminalsFaston terminals
Package Weight(Lbs)22.68 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-55 °C, -40-55 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Circularity Profile
- ENVEOLI2403024EN
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Environmental DisclosureENVPEP2403024EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2403024EN
General Attributes
- Product Or Component Type
- power relay
Range Of ProductLegacy
Input Attributes
- Input Current
- 15 A
- Input Voltage
- 24 V DC
Input Resistance450 Ohm
