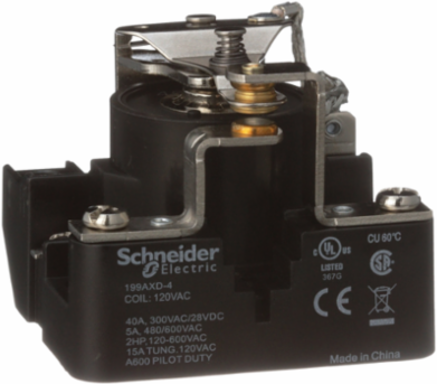

Schneider Electric 199AXD-4 Power relay, SE Relays, SPDT, 40A, 120 VAC, magnetic blowout, open type
- MPN: 199AXD-4
- PPN: SCH-199AXD-4
- UNSPSC: 39122324
CAD
$100.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The SE Relays 199 series, open type, heavy duty power relay offers high-capacity switching with high dielectric strength. High-power contacts rated of 40A resistive and 2hp at 120VAC to 600 VAC, input coil voltage 120VAC with SPDT silver alloy contact configuration. Riveted construction helps to increase the mechanical life of the relay. Environmentally friendly design is compliant with the European Restriction of Hazardous Substances directive (RoHS).
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
Physical Attributes
| Wire Stripping Length | 8 mm |
|---|
Complementary Attributes
| Ie Rated Operational Current | 40 A at 300 V AC (on resistive load) conforming to UL40 A at 28 V DC (on resistive load) conforming to UL5 A at 480 V AC (on resistive load) conforming to UL, 5 A at 600 V AC (on resistive load) conforming to UL, 15 A at 120 V AC (tungsten filament) conforming to UL |
|---|---|
| Maximum Switching Voltage | 600 V AC |
| Ue Rated Operational Voltage | 6...600 V AC 50-60 Hz6...250 V DC |
| Maximum Horse Power Rating | 2 hp 120...600 V AC 50/60 Hz |
|---|---|
| Minimum Switching Current | 1000 mA 5 V AC/DC |
Important Information Attributes
| Dielectric Strength | 2200 V AC between coil and contact, 2200 V AC between poles1500 V AC between open contacts |
|---|---|
| Local Data Status | Publishable |
| Return Indicator | N |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1918 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Kit Identifier | N |
| Average Impedance | 4 mOhm |
| Contacts Type And Composition | 1 C/O |
| Electrical Durability | 50000 cycles resistive |
| Power Consumption In W | 4-4 W DC |
| Product Or Component Type | power relay |
| Sustainable Packaging | No |
| Tightening Torque | 1.2-1.7 N.m |
| Connections Terminals | screw terminal - 1 x 6-6 mm² |
| Customs Code | 8536490075 |
| Short Circuit Current | 3 kA |
| Certificate Agency | UL Listed, CSA, CE |
|---|---|
| Local Publishable Date | 2026-01-12 |
| Weee Scope | Out |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Associated Fuse Rating | 50 A gG at 690 V coordination type 2 for power circuit |
| Contact Operation | double action |
| Cover Type | open cover |
| Power Consumption In Va | 10-10 VA AC |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Returnability | No |
| Switch Function | SPDT |
| Voltage Range | 0.85...1.1 Un AC/DC |
| Nbr. Of Units In Pkg. | 1 |
| Drop Out Voltage Threshold | >= 0.1 Uc>= 0.1 Uc |
| Warranty In Months | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -55-55 °C, -55-55 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Environmental Disclosure | ENVPEP2506027EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2506027EN |
| Ambient Air Temperature For Storage | -55-100 °C, -55-100 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | power relay |
|---|
Input Attributes
| Input Current | 40 A |
|---|---|
| Input Voltage | 120 V AC |
| Input Resistance | 290 Ohm |
|---|
