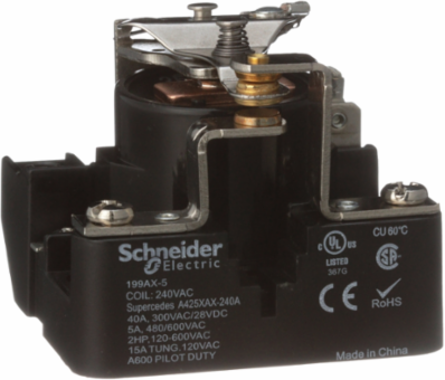

Schneider Electric 199AX-5 Power relay, SE Relays, SPDT, 40A, 240 VAC, open type, heavy duty
- MPN: 199AX-5
- PPN: SCH-199AX-5
CAD
$91.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The SE Relays 199 series, open type, heavy duty power relay offers high-capacity switching with high dielectric strength. High-power contacts rated of 40A resistive and 2hp at 120VAC to 600 VAC, input coil voltage 240VAC with SPDT silver alloy contact configuration. Riveted construction helps to increase the mechanical life of the relay. Environmentally friendly design is compliant with the European Restriction of Hazardous Substances directive (RoHS).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
Physical Attributes
- Wire Stripping Length
- 8 mm
Complementary Attributes
- Maximum Horse Power Rating
- 2 hp 120...600 V AC 50/60 Hz
- Minimum Switching Current
- 1000 mA 5 V AC/DC
Maximum Switching Voltage600 V AC
Important Information Attributes
- Dielectric Strength
- 2200 V AC between coil and contact, 2200 V AC between poles1500 V AC between open contacts
- [Ie] Rated Operational Current
- 40 A at 300 V AC (on resistive load) conforming to UL40 A at 28 V DC (on resistive load) conforming to UL5 A at 480 V AC (on resistive load) conforming to UL, 5 A at 600 V AC (on resistive load) conforming to UL, 15 A at 120 V AC (tungsten filament) conforming to UL
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1918
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Kit Identifier
- N
- Average Impedance
- 4 mOhm
- Contacts Type And Composition
- 1 NC + 1 NO
- Electrical Durability
- 50000 cycles resistive
- Power Consumption In W
- 4-4 W DC
- Product Or Component Type
- power relay
- Sustainable Packaging
- No
- Tightening Torque
- 1.2-1.7 N.m
- Pep Code
- ENVPEP2506027EN
- Connections - Terminals
- screw terminal - 1 x 6-6 mm²
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490075
Certificate AgencyUL Listed, CSA, CE
Drop-out Voltage Threshold>= 0.1 Uc AC/DC, >= 0.1 Uc AC/DC>= 0.1 Uc AC/DC, >= 0.1 Uc AC/DC
Local Publishable Date2026-04-29
Stocking FlagY
Weee ScopeOut
Scope PerimeterOutside of Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Associated Fuse Rating50 A gG at 690 V coordination type 2 for power circuit
Contacts Materialsilver alloy contacts
Cover Typeopen cover
Power Consumption In Va10-10 VA AC
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityNo
Switch FunctionSPDT
Voltage Range0.85...1.1 Un AC/DC
[Ue] Rated Operational Voltage6...600 V AC 50-60 Hz6...250 V DC
Short-circuit Current3 kA
Package Weight(Lbs)295 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -55-55 °C, -55-55 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP2506027EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2506027EN
Ambient Air Temperature For Storage-55-100 °C, -55-100 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- power relay
Input Attributes
- Input Current
- 40 A
- Input Voltage
- 240 V AC
Input Resistance1200 Ohm
