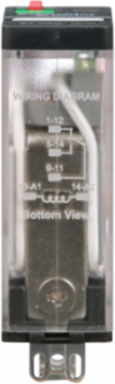

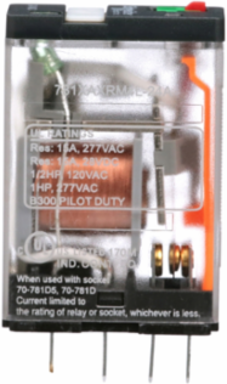

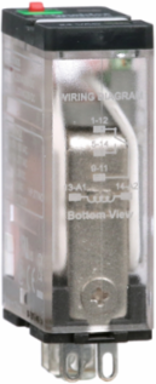

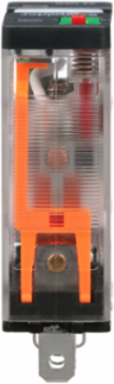

Schneider Electric 781XAXRM4L-24A Power Relay, General Purpose Relays, SPDT, LED clear cover, lock push button, faston terminals, 15A, 24V AC, 1NC + 1NO
Schneider Electric 781XAXRM4L-24A Power Relay, General Purpose Relays, SPDT, LED clear cover, lock push button, faston terminals, 15A, 24V AC, 1NC + 1NO
- MPN: 781XAXRM4L-24A
- PPN: SCH-781XAXRM4L-24A
- UNSPSC: 39122324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$17.05/ EA
Description
The SE Relays 781R series, plug-in general purpose relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover with LED indication and locking push button. Contacts rated as 10A resistive at 277VAC, motor 1/3hp at 120VAC, 1hp at 277VAC with nominal coil voltage 24VAC , makes relay to be an ideal choice for automation panels and controls. Gold flashed contact SPDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option, blade terminal style simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Slim design of 14 mm width saves valuable space. Mechanical standard flag indicator displays the relay status during testing or operation.
Features
- Used in robust conditions
- Durable;open frame construction
- With optional blowout magnet for DC switching
- 2HP motor load rating
- Wide range of operating temperature from -30°C to 50°C
Specifications
Conformance Attributes
- Product Certifications
- UL, CE, CSA
Complementary Attributes
- Maximum Horse Power Rating
- 0.5 hp 120 V AC 50-60 Hz, 1 hp 277 V AC 50-60 Hz
- Minimum Switching Current
- 10 mA 17 V
Maximum Switching Voltage300 V AC UL, 300 V AC CSA, 250 V AC IEC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 2000 V AC between coil and contact, 2000 V AC between poles, 1500 V AC between contacts
- Local Signalling
- LED, flag
- Vibration Resistance
- +/-1 mm 10-35 Hz), +/-1 mm 10-35 Hz), +/-1 mm 10-35 Hz), +/-1 mm 10-35 Hz), 3 gn 35-150 Hz)
- Ie Rated Operational Current5
- 15 A at 120...277 V AC conforming to UL, 15 A at 28 V DC conforming to UL, 15 A at 120/150 V AC conforming to CSA, 10 A at 151/277 V AC conforming to CSA, 15 A at 28 V DC conforming to CSA, 15 A at 250 V AC (NO) conforming to IEC, 15 A at 28 V DC (NO) conforming to IEC, 7.55 A at 250 V AC (NC) conforming to IEC, 7.55 A at 28 V DC (NC) conforming to IEC
- Local Publishable Date
- 2026-01-12
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- Yes
- Return Indicator
- Y
- Function Option
- Standard
- Contacts Type And Composition
- 1 NC + 1 NO
- Electrical Durability
- 100000 cycles resistive
- Mounting Support
- socket
- Power Consumption In VA
- 1.9-1.9 VA AC
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Legacy
- Shock Resistance
- 15 gn in operation
- Switch Function
- SPDT
- Connections Terminals
- Faston terminals
- Stocking Flag
- N
- Pep Code
- ENVPEP2403024EN
- Connections Terminals3
- Faston terminals
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Drop Out Voltage Threshold>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC, >= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC
Operating Time20 ms operating, 20 ms tripping
Ie Rated Operational Current215 A at 120...277 V AC conforming to UL, 15 A at 28 V DC conforming to UL, 15 A at 120/150 V AC conforming to CSA, 10 A at 151/277 V AC conforming to CSA, 15 A at 250 V AC (NO) conforming to IEC, 7.55 A at 250 V AC (NC) conforming to IEC
Local Data StatusPublishable
ManufacturerSquare D
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2403024EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Contacts Materialsilver alloy, gold flashed
Control Typelockable test button
Mechanical Durability10000000 cycles
Package Weight Lbs26 g
Power Consumption In W1.4-1.4 W DC
Product Or Component Typepower relay
ReturnabilityYes
Sustainable PackagingYes
Voltage Range0.8...1.1 Un AC/DC
Medium DescPower Relay, General Purpose Relays, SPDT, LED clear cover, lock push button, faston terminals, 15A, 24V AC, 1NC + 1NO
Product Kit IdentifierN
Global Commercial StatusEnd of commerc. announced
Environment Attributes Main
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Ambient Air Temperature For Operation
- -40-55 °C
- Circularity Profile
- ENVEOLI2403024EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of SVHC
- Yes
- Pep Code
- ENVPEP2403024EN
ROHS Exemption InformationYes
Reach Free SHVCYes
China ROHS RegulationX
Ambient Air Temperature For Storage-40-85 °C
Environmental DisclosureENVPEP2403024EN
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- power relay
Range Of ProductLegacy
Input Attributes
- Input Current
- 15 A
- Input Voltage
- 24 V AC
Input Resistance177 Ohm
Specifications
- Depth
- 27.3 mm
