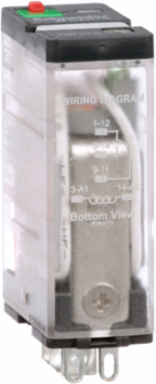

Schneider Electric 781XAXRM4L-120A Power Relay, General Purpose Relays, SPDT, LED clear cover, lock push button, faston terminal, 15A, 120V AC, 1NO + 1NC

  • MPN: 781XAXRM4L-120A
  • PPN: SCH-781XAXRM4L-120A
  • UNSPSC: 39122324

CAD

$17.05

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

The SE Relays 781R series, plug-in general purpose relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover with LED indication and locking push button. Contacts rated as 10A resistive at 277VAC, motor 1/3hp at 120VAC, 1hp at 277VAC with nominal coil voltage 120VAC , makes relay to be an ideal choice for automation panels and controls. Gold flashed contact SPDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option, blade terminal style simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Slim design of 14 mm width saves valuable space. Mechanical standard flag indicator displays the relay status during testing or operation.

Features

  • Used in robust conditions
  • Durable;open frame construction
  • With optional blowout magnet for DC switching
  • 2HP motor load rating
  • Wide range of operating temperature from -30°C to 50°C

Documentation & Downloads

Specifications

Key Specifications

Country of OriginChina
Depth27.3 mm

Complementary Attributes

Maximum Switching Voltage300 V AC UL, 300 V AC CSA250 V AC IEC
Maximum Horse Power Rating0.5 hp 120 V AC 50-60 Hz1 hp 277 V AC 50-60 Hz
Ie Rated Operational Current15 A at 28 V DC conforming to CSA15 A at 28 V DC (NO) conforming to IEC7.55 A at 28 V DC (NC) conforming to IEC, 15 A at 120...277 V AC conforming to UL15 A at 28 V DC conforming to UL15 A at 120/150 V AC conforming to CSA10 A at 151/277 V AC conforming to CSA, 15 A at 250 V AC (NO) conforming to IEC7.55 A at 250 V AC (NC) conforming to IEC
Minimum Switching Current10 mA 17 V

Important Information Attributes

Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation IdCOMMERCIAL, INDUSTRIAL
Dielectric Strength2000 V AC between coil and contact, 2000 V AC between poles1500 V AC between contacts
Operating Time20 ms operating, 20 ms tripping
Certificate AgencyUL, CE, CSA
Local Data StatusPublishable
Return IndicatorY
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id4
Function Option IdSTANDARD
Product Kit IdentifierN
Contacts Type And Composition1 NC + 1 NO
Electrical Durability100000 cycles resistive
Mounting Supportsocket
Power Consumption In W1.4-1.4 W DC
Product Or Component Typepower relay
ReturnabilityYes
Sustainable PackagingYes
Voltage Range0.8...1.1 Un AC/DC
Height Nominal39.8 mm
Nbr. Of Units In Pkg.1
Warranty In Months18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Local SignallingLED, flag
Vibration Resistance+/-1 mm 10-35 Hz), +/-1 mm 10-35 Hz)+/-1 mm 10-35 Hz), +/-1 mm 10-35 Hz)3 gn 35-150 Hz)
Drop Out Voltage Threshold>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC
Local Publishable Date2026-03-26
Weee ScopeOut
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2403024EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionStandard
Contacts Materialsilver alloy, gold flashed
Control Typelockable test button
Mechanical Durability10000000 cycles
Power Consumption In Va1.9-1.9 VA AC
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductLegacy
Shock Resistance15 gn in operation
Switch FunctionSPDT
Connections TerminalsFaston terminals
Width Nominal21 mm
Customs Code8536490075

Environment Attributes Main

Ambient Air Temperature For Operation-40-55 °C, -40-55 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Circularity ProfileENVEOLI2403024EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Environmental DisclosureENVPEP2403024EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2403024EN

General Attributes

Product Or Component Typepower relay
Range Of ProductLegacy

Input Attributes

Input Current15 A
Input Voltage120 V AC
Input Resistance4430 Ohm

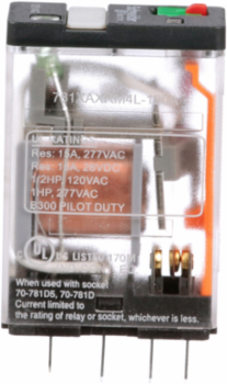

Power Relay, General Purpose Relays, SPDT, LED clear cover, lock push button, faston terminal, 15A, 120V AC, 1NO + 1NC

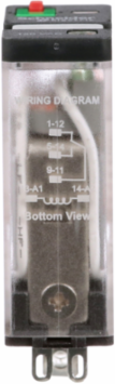

Power Relay, General Purpose Relays, SPDT, LED clear cover, lock push button, faston terminal, 15A, 120V AC, 1NO + 1NC

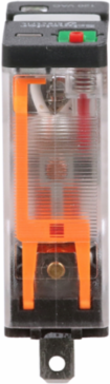

Power Relay, General Purpose Relays, SPDT, LED clear cover, lock push button, faston terminal, 15A, 120V AC, 1NO + 1NC
Power Relay, General Purpose Relays, SPDT, LED clear cover, lock push button, faston terminal, 15A, 120V AC, 1NO + 1NC
