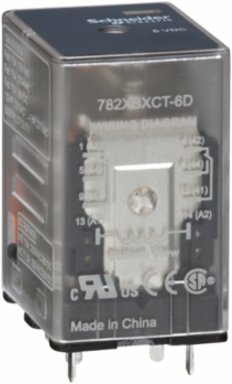

Power relay, SE Relays, 15A, DPDT, 6V, DC, clear cover, Faston terminlas
Schneider Electric

Schneider Electric 782XBXCT-6D Power relay, SE Relays, 15A, DPDT, 6V, DC, clear cover, Faston terminlas

  • MPN: 782XBXCT-6D
  • PPN: SCH-782XBXCT-6D

CAD

$30.02

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

The SE Relays 782 series, plug-in general purpose relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover. Contacts rated as 15A resistive at 277VAC, motor 1/2hp at 120VAC, 1hp at 277VAC with nominal coil voltage 6VDC , makes relay to be an ideal choice for automation panels and controls. Gold flashed contact DPDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option, CT terminal style simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Mechanical standard flag indicator displays the relay status during testing or operation.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
China
Depth27.3 mm

Complementary Attributes

Maximum Switching Voltage
300 V AC UL, 300 V AC CSA250 V AC IEC
Minimum Switching Current
10 mA 17 V
Maximum Horse Power Rating0.5 hp 120 V AC 50/60 Hz1 hp 277 V AC 50/60 Hz

Important Information Attributes

Dielectric Strength
2000 V AC between coil and contact, 2000 V AC between poles1500 V AC between contacts
Vibration Resistance
+/- 1 mm 10-35 Hz), +/- 1 mm 10-35 Hz)+/- 1 mm 10-35 Hz), +/- 1 mm 10-35 Hz)3 gn 35-150 Hz)
[Ie] Rated Operational Current
15 A at 28 V DC conforming to CSA15 A at 28 V DC (NO) conforming to IEC7.55 A at 28 V DC (NC) conforming to IEC, 15 A at 120...277 V AC conforming to UL15 A at 28 V DC conforming to UL15 A at 120/150 V AC conforming to CSA10 A at 151/277 V AC conforming to CSA, 15 A at 250 V AC (NO) conforming to IEC7.55 A at 250 V AC (NC) conforming to IEC
Carbon Footprint Of The Distribution Phase [A4]
0.0047075917520425364, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0.006040679548696667, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
13 kg CO2 eq., 12.562707344632765
Local Publishable Date
2026-01-12
Stocking Flag
Y
Weee Scope
Out
Scope Perimeter
Outside of Europe
End Of Life Doc Ref
ENVEOLI2403024EN
Reach Full Compliance Status Id
NOT_CONTAINING_SVHC
Rohs Eur In Scope
No
Rohs Eur Conformity Date
1930
China Rohs In Scope
Yes
With Recycled Cardboard
Yes
Product Kit Identifier
N
Contacts Type And Composition
2 NO + 2 NC
Local Signalling
flag
Mounting Support
socket
Power Consumption In W
0.85-0.85 W DC
Product Or Component Type
power relay
Returnability
Yes
Software Version
v5.9.4
Switch Function
DPDT
Voltage Range
0.8...1.1 Un AC/DC
Database Version
2022-01
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Functional-unit Description
782 series plug-in general purpose relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover with LED indication and locking push button. Gold flashed contact DPDT configuration reduces oxidation and increases shelf life gives simultaneous control of separate circuits.This product will be in active mode at 24% in overall power consumption of 1.77 W with life span of 10 years and adhering to UL standards.
Reference Lifetime In Y
10
Energy Model - Installation [A5]
Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]
Electricity Mix; Production mix; Low voltage; US
Width Nominal
21 mm
Nbr. Of Units In Pkg.
1
Take-back
No
Customs Code
8536410050
Operating Time20 ms operating, 20 ms tripping
Certificate AgencyUL, CE, CSA
Drop-out Voltage Threshold>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.05806219686162625
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.5 kg CO2 eq., 0.49500817014654386
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Contacts Materialsilver alloy, gold flashed
Electrical Durability100000 cycles resistive
Mechanical Durability10000000 cycles
Power Consumption In Va1.1-1.1 VA AC
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductLegacy
Shock Resistance15 gn in operation
Sustainable PackagingYes
Total Lifecycle Carbon Footprint13 kg CO2 eq.
Pep CodeENVPEP2403024EN
Pep Verification Date2024-06-09
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Unit1
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; CN
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US
Height Nominal34.8 mm
Connections - Terminalspins for printed circuit board
Package Weight(Lbs)0.04 kg
Warranty (In Months)18

Environment Attributes Main

Ambient Air Temperature For Operation
-40-55 °C, -40-55 °C
Take Back
No
Recycled Metal Content At Cr Level
0 %
Carbon Footprint
13.126525982941676
Environmental Disclosure
ENVPEP2403024EN
Packaging Made With Recycled Cardboard
Yes
Reach Free Of Svhc
Yes
Pep Code
ENVPEP2403024EN
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Circularity ProfileENVEOLI2403024EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2024-06-09
Psr VersionPSR-0005-ed2-2016 03 29

General Attributes

Product Or Component Type
power relay
Range Of ProductLegacy

Input Attributes

Input Current
15 A
Input Voltage
6 V DC
Input Resistance40 Ohm
