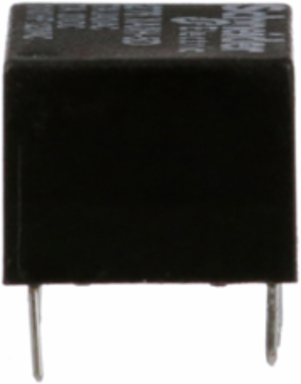

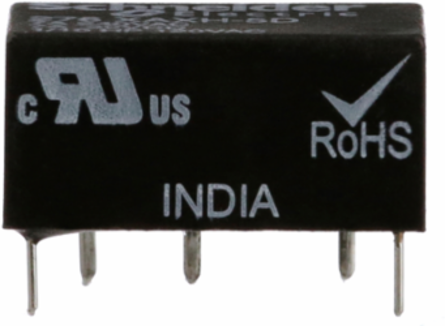

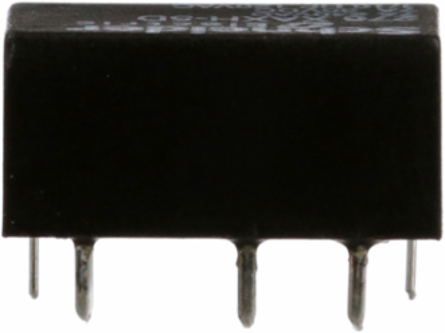

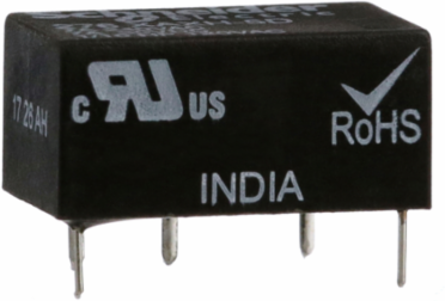

Schneider Electric 276XAXH-5D Power Relay, General Purpose Relays, SPDT, epoxy sealed, pins for printed circuit board, 7A, 5V DC, 1NC + 1NO
- MPN: 276XAXH-5D
- PPN: SCH-276XAXH-5D
- UNSPSC: 39122324
CAD
$26.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The SE Relays 276 series, electromechanical general purpuse relay offers high switching capacity in a small package. High current contact rating of 7A at 240VAC and motor rating of 1/6hp at 120VAC with coil voltage of 5VDC makes relay to be an ideal choice for any kind of automation needs. SPDT contact configuration gives simultaneous control of separate circuits. Low-profile designmake possible to use less than 12.7mm² (0.5in²) which saves valuable space on a printed circuit board. Epoxy sealed packege allows relay to be washed after assembly.
Features
- Used in robust conditions
- Durable;open frame construction
- With optional blowout magnet for DC switching
- 2HP motor load rating
- Wide range of operating temperature from -30°C to 50°C
Documentation & Downloads
Specifications
Key Specifications
| Depth | 20.49 mm |
|---|
Complementary Attributes
| Maximum Horse Power Rating | 0.10 hp 120 V AC |
|---|---|
| Ie Rated Operational Current | 7 A at 240 V AC7 A at 30 V DC |
| Minimum Switching Current | 100 mA |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Drop Out Voltage Threshold | >= 0.1 Uc DC, >= 0.1 Uc DC>= 0.1 Uc DC, >= 0.1 Uc DC |
| Local Publishable Date | 2026-05-08 |
| Weee Scope | Out |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 4 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Contacts Type And Composition | 1 NC + 1 NO |
| Electrical Durability | 100000 cycles |
| Mechanical Durability | 5000000 cycles |
| Operating Time | 10 ms |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Protective Treatment | epoxy sealed |
| Shock Resistance | 20 gn in operation |
| Switch Function | SPDT |
| Voltage Range | 0.8...1.1 Un DC |
| Height Nominal | 10 mm |
| Certificate Agency | UL |
| Customs Code | 8536490075 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Standard |
| Contacts Material | silver alloy contacts |
| Dielectric Strength | 2000 V AC between coil and contact1000 V AC between contacts |
| Electrical Insulation Class | class E |
| Mounting Support | printed circuit boards |
| Power Consumption In W | 0.2-0.2 W DC |
| Product Or Component Type | power relay |
| Returnability | Yes |
| Sustainable Packaging | No |
| Vibration Resistance | 1.5 gn 10-55 Hz)in operation |
| Connections Terminals | pins for printed circuit board |
| Width Nominal | 12.7 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-70 °C, -40-70 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Environmental Disclosure | ENVPEP130203EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP130203EN |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | power relay |
|---|
Input Attributes
| Input Current | 7 A |
|---|---|
| Input Voltage | 5 V DC |
| Input Resistance | 125 Ohm |
|---|
