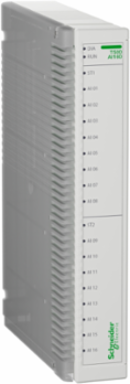

Schneider Electric EMS75410 analog inputs PowerLogic T500, AI160/C1 hot-swappable expansion module 16 analog inputs with 1 millisecond timestamping, direct connection

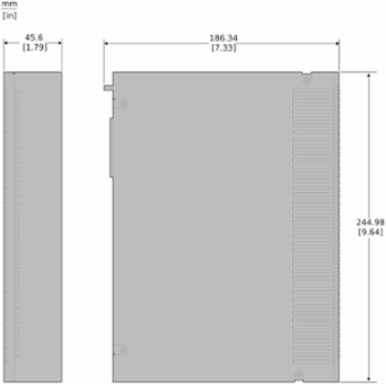

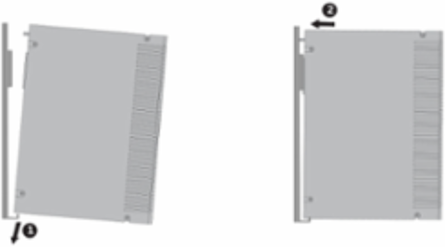

PowerLogic T500 is the next-gen substation controller platform. This hot-swappable analog inputs expansion module provides 16 inputs for DC analog signals from the field. Hot-swappable electronics include millisecond timestamping and substation-grade galvanic isolation on all connections to field. Analog channel settings and calibrations are individually configurable. Connection to field via direct plugin terminal headers connected to the front face of the module. The product dimensions are 45mm in width, 245mm in height and 180mm in depth. This device is compliant wtih IEC 61850-3. Insert into any T500 backplane slot to provide system control and communications functions. Fix in place via frontal screw. Offering excellent performance, high scalability and full application modularity and extensive redundancy options. PowerLogic T500 satisfies the needs of the most demanding substation controller use cases.
