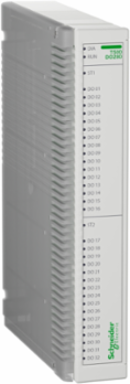

Schneider Electric EMS74320 digital outputs PowerLogic T500, DO280/C2 hot-swappable expansion module 32 transistor outputs with 1ms timestamping, connection via terminal block

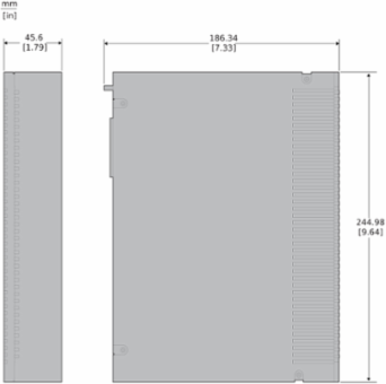

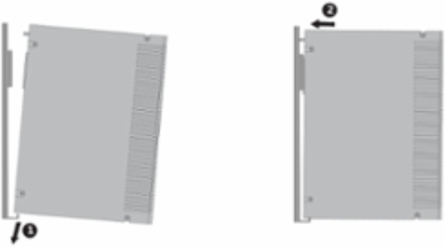

PowerLogic T500 is the next-gen substation controller platform. This hot-swappable digital outputs expansion module provides 32 potential free contact outputs to issue substation automation control commands. Hot-swappable electronics include millisecond timestamping and substation-grade galvanic isolation on all connections to field. All outputs are configurable to be managed as as single, double and/or select-before operate commands. Connection to field via flat-ribbon cables and DIN-rail mounted interfacing terminal blocks. The product dimensions are 45mm in width, 245mm in height and 180mm in depth. This device is compliant wtih IEC 61850-3. Insert into any T500 backplane slot to provide system control and communications functions. Fix in place via frontal screw. Offering excellent performance, high scalability and full application modularity and extensive redundancy options. PowerLogic T500 satisfies the needs of the most demanding substation controller use cases.
