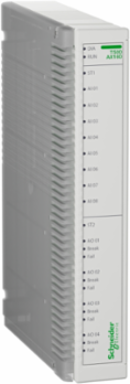

Schneider Electric EMS75510 analog I/O PowerLogic T500, AX160/C1 hot-swappable expansion module 8 analog inputs, 4 analog outputs with 1ms timestamping, direct connection

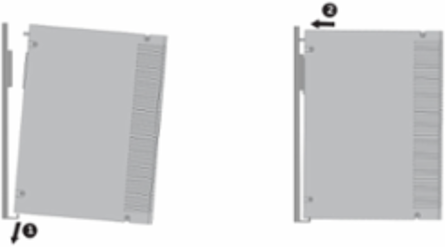

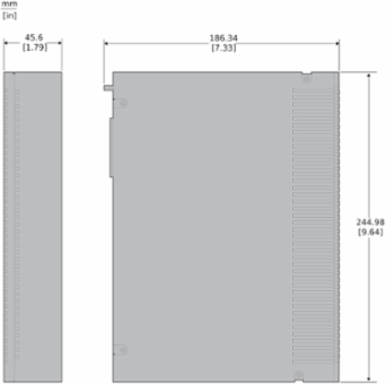

PowerLogic T500 is the next-gen substation controller platform. This hot-swappable analog inputs and outputs expansion module provides 8 inputs and 4 outputs for DC analog signals in the field. Hot-swappable electronics include millisecond timestamping and substation-grade galvanic isolation on all connections to field. Analog channel settings and calibrations are individually configurable. Connection to field via direct plugin terminal headers connected to the front face of the module. The product dimensions are 45mm in width, 245mm in height and 180mm in depth. This device is compliant wtih IEC 61850-3. Insert into any T500 backplane slot to provide system control and communications functions. Fix in place via frontal screw. Offering excellent performance, high scalability and full application modularity and extensive redundancy options. PowerLogic T500 satisfies the needs of the most demanding substation controller use cases.
