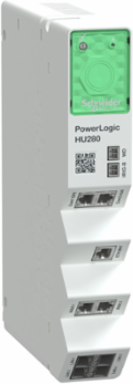

Schneider Electric EMS72000 head unit PowerLogic HU280 communication gateway module with cyber security for primary substations, hot-swappable, 7 Ethernet, 2 Serial
- MPN: EMS72000
- PPN: SCH-EMS72000
CAD
$4062.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

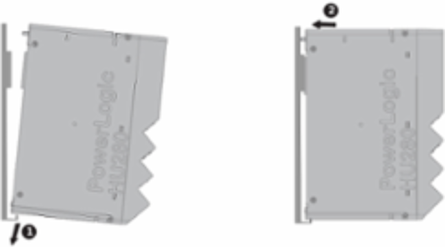

PowerLogic T500 substation controller HU280 is the next generation platform for high-end control. Providing multifunctional substation automation control applications for demanding users in MV and HV installations. It is designed to monitor and control your electrical power system while maximizing security, reliability and efficiency. PowerLogic T500 delivers a modular and cybersecure platform, fully prepared for virtualization. The flexible mechanical design with hot-swappable hardware modules enhances device maintenance and reduces installation downtime. PowerLogic T500 offers an intuitive user interface via its embedded webserver. Adapt to evolving needs thanks to open and fully configurable applications. Exposure to cybersecurity threats are reduced thanks to integrated IEC62443 SL2 features. The product dimensions are 205mm in width, 180mm in height and 280mm in depth. This device is compliant wtih IEC 61850, IEC 60870, IEEE 1815, IEEE 1588, IEC 62439, IEC 62351, IEC 62443, NERC-CIP. Insert into any T500 backplane slot to provide system control and communications functions. Fix in place via frontal screw. It provides an EcoStruxure-ready open architecture, ready to connect to on-site and remote control systems (SCADA, ADMS, DCS). PowerLogic T500 offers plug and play SFP Ethernet modules for maximizing the flexibility of network evolutions. Offering excellent performance, high scalability and full application modularity and extensive redundancy options. PowerLogic T500 satisfies the needs of the most demanding substation controller use cases.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Spain, France, Indonesia, Latvia, Philippines, United States |
|---|
| Depth | 180 mm |
|---|
Communications & Management Attributes
| Communication Port Protocol | IEC 61850 client/server, DNP3 serial and TCP client/server, IEC 60870-5-101 client/serverIEC 60870-5-103 client mode, IEC 60870-5-104 client/server, Modbus serial and TCP client/server |
|---|---|
| Communication Port Support | 3 10/100BASE-T RJ452 RS485/RS232 RJ45 |
| Communication Service | TLS, DHCP client, RADIUS client, LDAP client, Syslog protocol support, web server (HTTPS) |
|---|
Important Information Attributes
| Cybersecurity | role-based access control, embedded firewall, secured interface, secure boot, encryption engine, certificate based authentication, firmware signature, security log, TPM (Trusted Platform Module) secure storage |
|---|---|
| Electromagnetic Compatibility | damped oscillatory magnetic field - test level: 100 A/m (at 1 MHz) conforming to IEC 61000-4-10radiated emission (30...6000 MHz) conforming to CISPR 32conducted emission (0.15...30 MHz) conforming to CISPR 32, magnetic field at power frequency - test level: level 5 criteria B (contact discharge) conforming to IEC 61000-4-8immunity to magnetic fields - test level: 1000 A/m (1.2/50 µs) conforming to IEC 61000-4-9immunity to magnetic fields - test level: 1000 A/m criteria A (8/20 µs) conforming to IEC 61000-4-9conducted disturbance emission - test level: 30 V criteria A (continuous) conforming to IEC 61000-4-16conducted disturbance emission - test level: 300 V (1 s) conforming to IEC 61000-4-16DC distribution network - test level: level 3 criteria A (signal (symmetrical)) conforming to IEC 61000-4-17damped oscillatory wave - test level: 2.5 kV CM, 1 kV DM (at 1 MHz) conforming to IEC 61000-4-18voltage dips and interruptions immunity test - test level: 100 % criteria A (5 s) conforming to IEC 61000-4-29voltage dips and interruptions immunity test - test level: 70 % criteria B (500 ms) conforming to IEC 61000-4-29voltage dips and interruptions immunity test - test level: 40 % (200 ms) conforming to IEC 61000-4-29voltage dips and interruptions immunity test - test level: 0 % (10 ms) conforming to IEC 61000-4-29electrical fast transient/burst immunity test - test level: level 4 criteria A (5 kHz) conforming to IEC 61000-4-4electrostatic discharge - test level: level 4 criteria B (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: level 4 (air discharge) conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test - test level: level 3 criteria A (80...2700 MHz) conforming to IEC 61000-4-3radiated radio-frequency electromagnetic field immunity test - test level: level 2 (2700...6000 MHz) conforming to IEC 61000-4-3, conducted RF disturbances - test level: 70 % (27 MHz +/- 0.135 MHz) conforming to IEC 61000-4-6surge immunity test - test level: level 3 criteria A (signal (symmetrical)) conforming to IEC 61000-4-5, surge immunity test - test level: level 4 (signal (asymmetrical)) conforming to IEC 61000-4-5, conducted RF disturbances - test level: level 4 criteria A (150 kHz...80 MHz) conforming to IEC 61000-4-6damped oscillatory magnetic field - test level: 100 A/m (at 0.1 MHz) conforming to IEC 61000-4-10, immunity to ripple - test level: 10 % Un, 15 % Un (100 Hz) conforming to IEC 61000-4-17 |
| Environmental Characteristic | exposure to cold 16 h conforming to -40 °C conforming to EN 60068-2-1, exposure to dry heat 16 h conforming to 85 °C conforming to EN 60068-2-2temperature variation for 3 cycles 3 h (95-95 %) conforming to 70 °C conforming to EN 60068-2-14, exposure to damp heat in service 6 cycles 24 h (95-95 %) conforming to 55 °C conforming to EN 60068-2-30, exposure to damp heat not in service 10 days (90-96 %) conforming to 40 °C conforming to EN 60068-2-78 |
| Programming Language | ST (structured text), IL (instruction list), LD (ladder), FBD (function block diagram), SFC (sequential function chart), calculation formula |
| Time Synchronisation Protocol | IRIG-B, GPS, PTP, SNTP |
| Carbon Footprint Of The Distribution Phase [A4] | 0.332115003, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.011608679, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 452 kg CO2 eq., 452.2159269 |
| Local Publishable Date | 2026-04-09 |
| Stocking Flag | N |
| Serviceability | Yes |
| Field Service Division | DPIBS |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Memory Capacity | 32 GB eMMC4 GB RAM DDR4up to 64 GB slot for Secure Digital card |
| Power Consumption In Va | 15 W |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | communication gateway |
| Realtime Clock | built-in clock, clock drift +/- 2 ppm at 0-40 °Cbuilt-in clock, clock drift +/- 3.5 ppm at 40-85 °C |
| Software Version | v6.2 |
| Total Lifecycle Carbon Footprint | 744 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2023-02 |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To act as control interface between power substation field elements and SCADA and DCS during 10 years in accordance with the relevant standards. |
| Functional-unit Unit | Unit |
| Energy Consumption On Product Lifetime In Kwh | 880.38 |
| Energy Model - Installation [A5] | Electricity Mix; Low voltage; 2018; Europe, EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Low voltage; 2018; Europe, EU-27 |

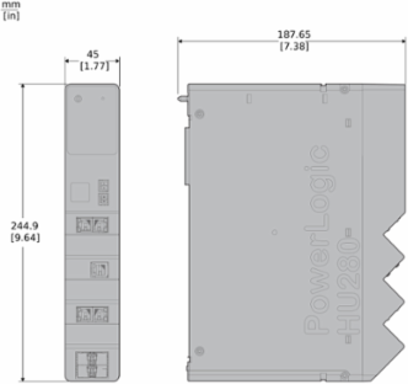

| Height Nominal | 244 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8517620090 |
| Data Recording | event logs, sequence of event recording, alarms |
|---|---|
| Encryption Protocol | AES (Advanced Encryption Standard), 3DES, MD5/SHA, RSA/ECC, single-pass authentication encryption |
| Mechanical Robustness | vibrations conforming to EN 60068-2-6, vibrations conforming to EN 60255-21-1shocks conforming to EN 60068-2-27, shocks conforming to EN 60255-21-2seismic tests conforming to EN 60255-21-3free fall resistance conforming to EN/IEC 60068-2-31 |
| Software Function | event log, alarm, Operating/Status report, assistance in commissioning and operating the installation, security/authority verification, reports and diagrams, device status, device operation, configuration management, firmware management, logging sessions, role management, data monitoring and control, TCP/serial traces, clock management, certificate management, cybersecurity log, customizable HMI screens |
| Certificate Agency | CE, UKCA, WEEE |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 3 kg CO2 eq., 2.722911349 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 288 kg CO2 eq., 288.3786309 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Device Type | Relay, Control & Measurement - Remote Terminal Unit / Feeder Automation |
| Traceability | Yes |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2403011_V1 |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2414 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Device Short Name | HU280 |
| Fixing Mode | by screw |
| Operating System | RTLinux |
| Processor Name | ARM Cortex-A53 quad core at 1.1 GHzARM Cortex-M4 at 400 MHz |
| Product Name | PowerLogic T500 |
| Range | PowerLogic |
| Returnability | Yes |
| Sustainable Packaging | No |
| User Language | multi-language |
| Pep Code | ENVPEP2403011EN |
| Pep Verification Date | 2024-04-04 |
| Psr Version | PSR-0005-ed3-EN-2023 06 06 |
| Data Source | referent product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Latvia, LV |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2018; Europe, EU-27 |
| Recyclability Potential In % | 27 |
| Width Nominal | 44 mm |
| Package Weight(Lbs) | 1.330 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-70 °C, -40-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2403011_V1 |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 6561.68 ft (2000 m) |
| Packaging Without Single Use Plastic | Yes |
| Relative Humidity | 5-95 % conforming to IEC 60068-2-30 |
| Pep Verification Date | 2024-04-04 |
| Psr Version | PSR-0005-ed3-EN-2023 06 06 |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 743.6611929 |
| Environmental Disclosure | ENVPEP2403011EN |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2403011EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | communication gateway |
|---|
