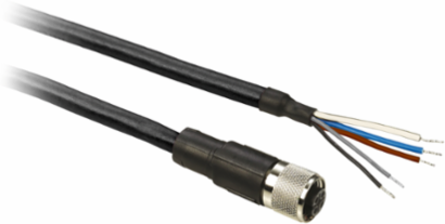

Telemecanique Sensors XZCP11V12L5 Pre wired connectors XZ, straight female, M12, 5 pins, cable PUR 5 m
- MPN: XZCP11V12L5
- PPN: TES-XZCP11V12L5
- UNSPSC: 32151902
CAD
$70.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pre wired connectors XZ, straight female, M12, 5 pins, cable PUR 5 m
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- general purpose
- Accessory / Separate Part Category
- cabling accessory
Range Of ProductTelemecanique Cabling components
Accessory / Separate Part Typepre-wired connectors
Complementary
- Collar Material
- metal
- Cable Outer Diameter
- 5.7 mm
- Wire Insulation Material
- PUR
- Cable Connector Fixing
- screw-on
- [In] Rated Current
- 4 A
- Status Led
- without
- Contact Resistance
- 5000 µOhm
Electrical Connectionstraight female connector M12, 5 pins
Minimum Insulating Resistance1 GΩ
[Ue] Rated Operational Voltage250 V AC || 300 V DC
Cable Length5 m
Cable Composition5 x 0.34 mm²
Net Weight0.26 kg
Offer Sustainability
- Rohs Exemption Information
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Environment
- Product Certifications
- cULus
- Ambient Air Temperature For Storage
- -40-80 °C
Ambient Air Temperature For Operation-40-80 °C static || -5-80 °C flexing
Ip Degree Of ProtectionIP67 || IP69K || IP65
