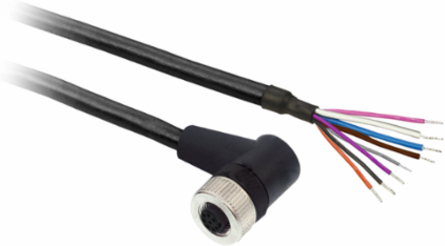

Telemecanique Sensors XZCP53P12L10 Pre wired connectors XZ, elbowed female, M12, 8 pins, cable PUR 10 m
- MPN: XZCP53P12L10
- PPN: TES-XZCP53P12L10
- UNSPSC: 32151902
CAD
$125.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pre wired connectors XZ, elbowed female, M12, 8 pins, cable PUR 10 m
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- Application
- Accessory / Separate Part Category
- cabling accessory
Range Of ProductTelemecanique Cabling components
Accessory / Separate Part Typepre-wired connectors
Complementary
- Collar Material
- nickel plated brass
- Cable Outer Diameter
- 6.4 mm
- Wire Insulation Material
- PUR
- Cable Connector Fixing
- screw-on
- Line Rated Current
- 2 A
- Status Led
- without
- Contact Resistance
- 5000 µOhm
Electrical Connectionstraight female connector M12, 8 pins
Minimum Insulating Resistance1 GΩ
[Ue] Rated Operational Voltage30 V AC || 36 V DC
Cable Length10 m
Cable Composition8 x 0.34 mm²
Net Weight0.47 kg
Environment
- Ambient Air Temperature For Storage
- -40-90 °C
Ip Degree Of ProtectionIP69K || IP65 || IP67
Offer Sustainability
- Rohs Exemption Information
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
