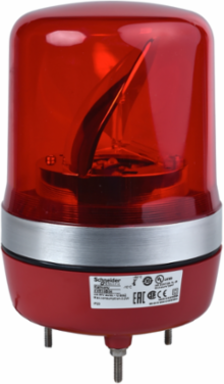

Schneider Electric XVR10B04 Prewired Rotating Mirror Beacon, 106mm, Red, 24V AC/DC, IP55
- MPN: XVR10B04
- PPN: SCH-XVR10B04
- UNSPSC: 32151503
CAD
$287.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Designed for reliability in various environments, this prewired rotating mirror beacon from Schneider Electric offers effective visual signaling with its striking red coloration. With an operational voltage of 24V AC/DC, it ensures versatility across different applications, while its robust IP55 rating provides protection against dust and water, making it suitable for outdoor use. The compact design at 106mm enables easy integration into existing systems, providing clear and noticeable alerts for enhanced safety and operational efficiency.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Weight | 624 g |
|---|
Physical Attributes
| Cable Length | 400 mm |
|---|---|

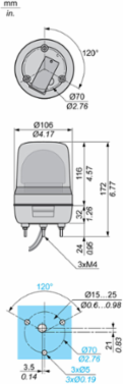

| Cad Overall Width | 106 mm |
| Cad Overall Depth | 106 mm |
|---|
Complementary Attributes
| Uimp Rated Impulse Withstand Voltage | 0.8 kV |
|---|
| Us Rated Supply Voltage | 24 V AC/DC |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Carbon Footprint Of The Distribution Phase A4 | 0.0998174322, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.5030816637, 0.5 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 8 kg CO2 eq., 8.1645408163 |
| Local Publishable Date | 2026-01-12 |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2506030EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Awg Gauge | 18 AWG |
| Current Consumption | 125 mA |
| Electrical Shock Protection Class | class II IEC 61140 |
| Light Source | high luminosity LED, red |
| Material | ABS (acrylonitrile butadiene-styrene): body partPMMA (polymethyl methacrylate): globe |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | prewired rotating mirror beacon |
| Range Of Product | Harmony XVR |
| Software Version | v5.9.4 |
| Supply Voltage Limits | 19-30 V DC21.6-26.4 V AC |
| Total Lifecycle Carbon Footprint | 13 kg CO2 eq. |
| Data Source | extrapolated product |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.8 kg CO2 eq., 0.8081533454 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 4 kg CO2 eq., 3.6535030741 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Compatibility Code | XVR |
| Device Short Name | XVR |
| Flashing Frequency | 2.3 Hz |
| Marking | CE |
| Mounting Diameter | 106 mm |
| Product Mounting | by 3 M4 screws |
| Protective Treatment | TC |
| Returnability | Yes |
| Sound Signalling | without |
| Sustainable Packaging | No |
| Database Version | 2022-01 |
| Certificate Agency | UL |
| Customs Code | 8531809026 |
| Functional Unit Description | This rotating mirror is part of the range of pre-wired rotating/flashing beacons Harmony XVR. It is supplied complete, pre-cabled with a buzzer integrated (adjustable sound level from 50dB to 90dB at 1 m). It provides good illuminating power and a long service life (reduced time for maintenance) thanks to its super-bright LED.It is designed for long distance signaling applications, used mainly in the iron and steel industry. It has power consumption of 4.704 W with use rate of 5% for a period of 10 years and product is adhering to standards EN 61000-6-2 |
| Functional Unit Unit | Unit |
| Energy Consumption On Product Lifetime In Kwh | 13.14 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -10-50 °C, -10-50 °C |
|---|---|
| Ip Degree Of Protection | IP55 IEC 60529 with accessory), IP23 IEC 60529 |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2506030EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2506030EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -35-70 °C, -35-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 13.2290963317 |
| Environmental Disclosure | ENVPEP2506030EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | prewired rotating mirror beacon |
|---|
| Range Of Product | Harmony XVR |
|---|
ETIM
| ETIM 8 | EC001341 |
|---|---|
| ETIM 10 | EC001341 |
| ETIM 9 | EC001341 |
|---|
Contractual Warranty Attributes
| Warranty | 18 months |
|---|
