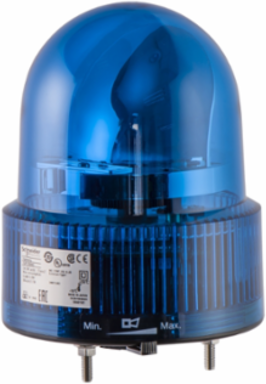

Schneider Electric XVR12B06S Prewired Rotating Mirror Beacon, 120mm, Blue, 50-90 dB Buzzer, 24V AC/DC
- MPN: XVR12B06S
- PPN: SCH-XVR12B06S
- UNSPSC: 32151503
CAD
$334.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This prewired rotating mirror beacon from Schneider Electric is designed to enhance visibility and signaling in various automation and control applications. Featuring a striking blue color and an integrated buzzer that emits a sound level ranging from 50 to 90 dB, it ensures effective communication of alerts in busy environments. The unit operates on a versatile 24V AC/DC power supply, making it suitable for diverse installations. Its compact 120mm design allows for easy integration into existing systems, ensuring that operators can quickly identify important signals and warnings, thereby enhancing safety and operational efficiency.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Japan |
|---|
| Weight | 617 g |
|---|

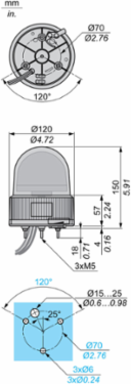

Physical Attributes
| Cable Length | 400 mm |
|---|---|
| Cad Overall Width | 120 mm |
| Cad Overall Depth | 120 mm |
|---|
Complementary Attributes
| Uimp Rated Impulse Withstand Voltage | 0.8 kV |
|---|
| Us Rated Supply Voltage | 24 V AC/DC |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | IEC 61000-6-4, IEC 61000-6-2 |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.8 kg CO2 eq., 0.7990875226 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 4 kg CO2 eq., 3.612518264 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2308034EN |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Compatibility Code | XVR |
| Device Short Name | XVR |
| Flashing Frequency | 2.3 Hz |
| Marking | CE |
| Mounting Diameter | 120 mm |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | prewired rotating mirror beacon |
| Range Of Product | Harmony XVR |
| Software Version | v5.9.4 |
| Supply Voltage Limits | 19-30 V DC21.6-26.4 V AC |
| Total Lifecycle Carbon Footprint | 18 kg CO2 eq. |
| Data Source | extrapolated product |
| Customs Code | 8531809026 |
| Functional Unit Description | This rotating mirror is part of the range of pre-wired rotating/flashing beacons Harmony XVR. It is supplied complete, pre-cabled with a buzzer integrated (adjustable sound level from 50dB to 90dB at 1 m). It provides good illuminating power and a long service life (reduced time for maintenance) thanks to its super-bright LED.It is designed for long distance signaling applications, used mainly in the iron and steel industry. It has power consumption of 4.704 W with use rate of 5% for a period of 10 years and product is adhering to standards EN 61000-6-2 |
| Functional Unit Unit | Unit |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase A4 | 0.0986976854, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.4974381193, 0.5 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 13 kg CO2 eq., 12.802 |
| Local Publishable Date | 2026-04-09 |
| Use Carbon Footprint | 12.802 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Awg Gauge | 18 AWG |
| Current Consumption | 196 mA |
| Electrical Shock Protection Class | class II IEC 61140 |
| Light Source | high luminosity LED, blue |
| Material | ABS (acrylonitrile butadiene-styrene): body partAS: globe |
| Noise Level | 50-90 dB continuous or intermittent tone)1 m |
| Product Mounting | by 3 M5 screws |
| Protective Treatment | TC |
| Returnability | Yes |
| Sound Signalling | buzzer |
| Sustainable Packaging | No |
| Database Version | 2022-01 |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -10-50 °C, -10-50 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 17.8097415913 |
| Environmental Disclosure | ENVPEP2308034EN |
| Ip Degree Of Protection | IP23 IEC 60529 |
| Packaging Without Single Use Plastic | No |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Ambient Air Temperature For Storage | -35-70 °C, -35-70 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2308034EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Pep Code | ENVPEP2308034EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | prewired rotating mirror beacon |
|---|
| Range Of Product | Harmony XVR |
|---|
ETIM
| ETIM 8 | EC001341 |
|---|---|
| ETIM 10 | EC001341 |
| ETIM 9 | EC001341 |
|---|
Contractual Warranty Attributes
| Warranty | 18 months |
|---|
