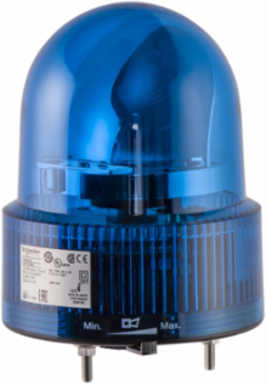

Schneider Electric XVR12B06 Prewired Rotating Mirror Beacon, 120mm, Blue, 24V AC/DC, IP23
Schneider Electric XVR12B06 Prewired Rotating Mirror Beacon, 120mm, Blue, 24V AC/DC, IP23
- MPN: XVR12B06
- PPN: SCH-XVR12B06
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$268.94/ EA
Description
Designed for visibility and reliability in various automation applications, this prewired rotating mirror beacon from Schneider Electric enhances safety with its striking blue color. Operating on both 24V AC and DC power, it offers flexible integration into numerous systems. The beacon is housed in a durable chassis with an IP23 rating, ensuring resilience against environmental factors while maintaining efficient performance. Ideal for alerting personnel in industrial settings, its rotating light provides a clear indication of signals, making it an essential addition to any pilot device setup.
Specifications
- Voltage
- 24 V AC/DC
- Current Consumption
- 125 mA
- Rated Impulse Withstand Voltage
- 0.8 kV

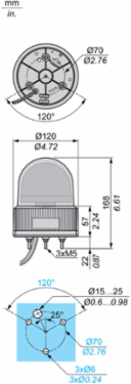

- Dimensions (Width x Depth)
- 4.72 in x 4.72 in (120 mm x 120 mm)
- Clamping Connection Capacity
- 0.83 mm²
- Material
- ABS (body), AS (globe)
- IP Rating
- IP23 IEC 60529
- Operating Temperature
- -10-50 °C (14-122 °F)
- Product Type
- Prewired rotating mirror beacon
- Mounting
- By 3 M5 screws
Rated Supply Voltage Limits19-30 V DC, 21.6-26.4 V AC
Flashing Frequency2.3 Hz
Mounting Diameter4.72 in (120 mm)
Cable Length15.75 in (400 mm)
AWG GaugeAWG 18
Protection ClassClass II IEC 61140
ComplianceCE, IEC 61000-6-2, IEC 61000-6-4, RoHS
Storage Temperature-35-70 °C (-31-158 °F)
ColorBlue
Country of OriginJapan
