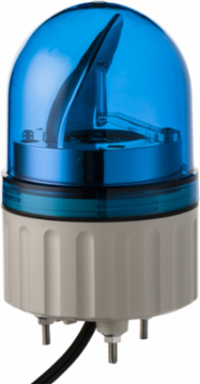

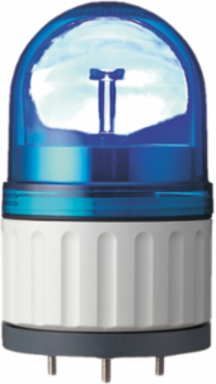

Schneider Electric XVR08B06 Prewired Rotating Mirror Beacon 84mm Blue 24V AC/DC
Schneider Electric XVR08B06 Prewired Rotating Mirror Beacon 84mm Blue 24V AC/DC
- MPN: XVR08B06
- PPN: SCH-XVR08B06
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$237.25/ EA
Description
This prewired rotating mirror beacon from Schneider Electric stands out in the field of automation and control, providing reliable visibility with its vibrant blue light. Operating on 24V AC/DC, it is designed for a variety of applications where alert signaling is essential. The compact 84mm size makes it easy to integrate into existing systems while ensuring that it effectively captures attention through its rotating mirror action. Ideal for use in stack lighting setups, this beacon enhances safety and awareness in both industrial and commercial environments.
Specifications
- Light Source
- high luminosity LED, blue
- Supply Voltage Limits
- 19-30 V DC, 21.6-26.4 V AC
- Flashing Frequency
- 2.3 Hz
- CAD Overall Width
- 84 mm (3.31 in)
- Cable Length
- 500 mm (19.69 in)
- Material
- ABS (body), PC (globe)
- Rated Impulse Withstand Voltage
- 0.8 kV
- Standards
- IEC 61000-6-2, IEC 61000-6-4
- Protective Treatment
- TC
- Ambient Air Temperature for Operation
- -10 to 50 °C (14 to 122 °F)
- Product Mounting
- by 3 M4 screws
- AWG Gauge
- AWG 18
Rated Supply Voltage24 V AC/DC
Current Consumption125 mA
Mounting Diameter84 mm (3.31 in)
CAD Overall Depth84 mm (3.31 in)
Net Weight0.3 kg (0.66 lb)
Electrical Shock Protection ClassClass II IEC 61140
IP Degree of ProtectionIP65 IEC 60529 with accessory, IP23 IEC 60529
Product CertificationsUL
Ambient Air Temperature for Storage-35 to 70 °C (-31 to 158 °F)
MarkingCE
Typeprewired rotating mirror beacon
Country of OriginID
